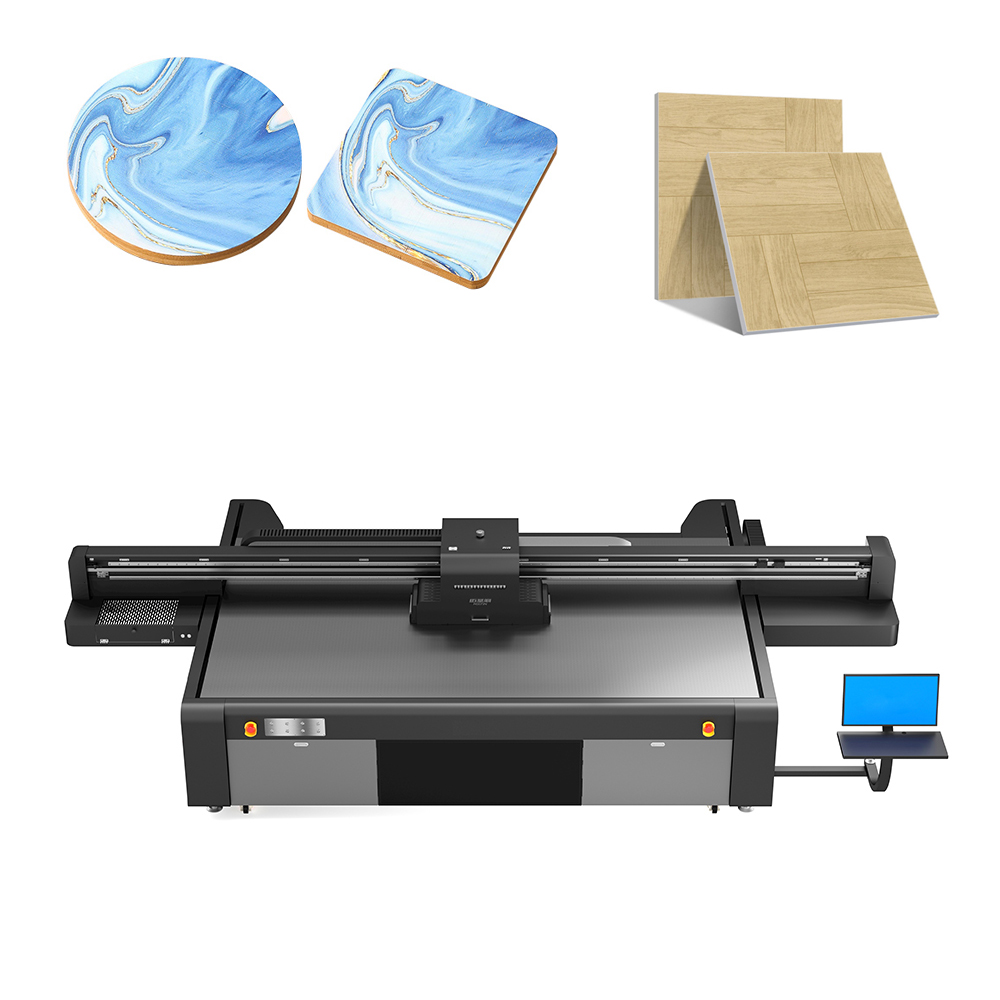

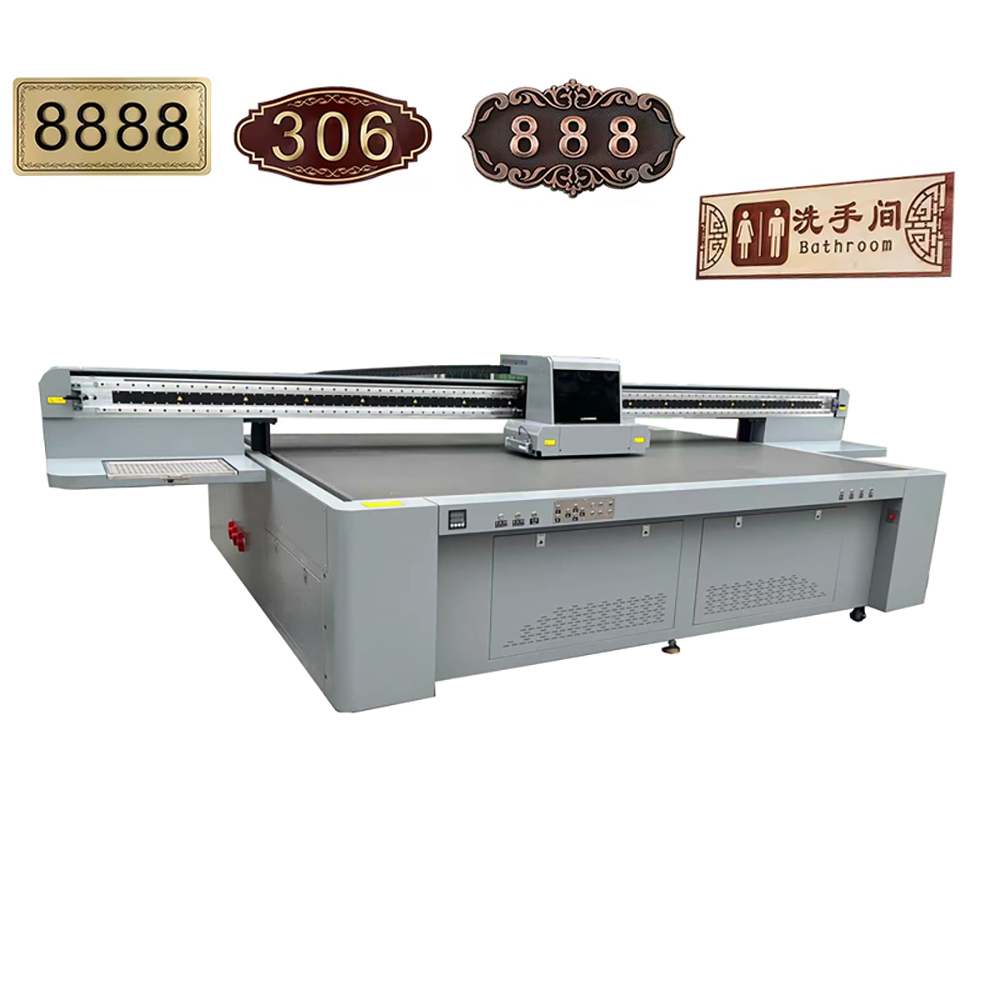

Title: Industrial Scale. Industrial Speed. The 3220 UV Printer – Built for Those Who Print Big and Print Fast.

Subtitle: 3.2 meters x 2.0 meters of seamless, rigid-material printing power. Print on acrylic, aluminum, glass, wood, and more – one piece, no tiling, no outsourcing, no limits.

The Industrial-Scale Problem

You have the clients. You have the space. But your current setup can’t handle:

· Full-sized billboards – 3m+ wide acrylic or aluminum panels
· Seamless trade show displays – One piece, no visible joins
· Large-format architectural panels – Elevator doors, wall cladding
· Industrial parts – Large control panels, machine covers

Outsourcing kills margins. Smaller flatbeds require tiling (and visible seams). Screen printing takes days or weeks.

The 3220 UV printer solves this.

At 3200mm x 2000mm (126″ x 79″), the 3220 prints directly on full-sized rigid materials – in one piece, at production speed, with no seams and no compromises.

Why Industrial Shops Choose the 3220

1. True One-Piece Large Format

No tiling. No seams. No alignment headaches.

The 3220 handles standard industrial sheet sizes effortlessly:

Sheet Size Fits? Margin
4′ x 8′ (1220x2440mm) Yes Ample
5′ x 10′ (1525x3050mm) Yes Good
European 1500x3000mm Yes Perfect
European 2000x3000mm Yes Fits exactly
3m x 2m billboard panels Yes Perfect
Door panels (any size) Yes Easily
Elevator cladding Yes One piece

From stadium billboards to luxury hotel elevator panels – if it fits on the bed, the 3220 prints it flawlessly.

2. Production Speeds That Move Your Business

Speed is profit. The 3220 delivers industrial throughput:

Mode Speed 4’x8′ Sheets/Hour Daily Output (8 hrs)
Draft 40–60 sqm/hour 15–22 sheets 120–176 sheets
Standard 25–35 sqm/hour 9–13 sheets 72–104 sheets
High Quality 12–18 sqm/hour 4–7 sheets 32–56 sheets

At draft speed: Print over 100 full 4’x8′ sheets in a single shift.

That’s true industrial capacity – not marketing hype.

3. Engineered for 24/7 Reliability

The 3220 is not a repurposed desktop printer. It is purpose-built for production environments:

· Reinforced steel gantry – Rock-solid stability at high traverse speeds
· Precision servo motors – Accurate positioning across 3.2 meters
· Configurable printheads – 2 to 8 Ricoh Gen5 or Kyocera heads (more heads = faster)
· Automatic height sensing – Detects material thickness, adjusts instantly
· Zoned vacuum table – 6–8 zones, holds warped or uneven sheets flat
· Heavy-duty chassis – Zero vibration, even at full speed
· Industrial-grade components – Designed for 24/7 operation

4. Industrial Ink System – Zero Downtime

Nothing kills profit like empty ink carts mid-job:

· Bulk ink containers – 5L to 20L options (days between changes)
· Circulating white ink – Prevents sedimentation – essential for large white areas on acrylic and glass
· Automated cleaning cycles – Scheduled nozzle maintenance during overnight runs
· Low-ink alerts – Real-time notifications to your phone or computer
· Dual ink paths – Switch between ink sets without stopping production

Applications That Command Premium Pricing

The 3220 opens high-value markets that smaller printers cannot touch:

Application Product Examples Typical Price (USD) Print Time Margin
Billboards 3m x 2m acrylic outdoor signs $800–2,500 5–10 min 70–80%
Trade Show Booths Seamless rigid panels, backlit displays $500–3,000 each 10–20 min 70–80%
Architectural Cladding Elevator doors, wall panels, facades $200–800 per panel 5–8 min 75–85%
Point-of-Purchase Large retail displays, floor graphics $300–1,500 10–15 min 70–80%
Industrial Marking Control panels, machine labels, equipment branding $50–200 each 1–3 min 75–85%
Sports & Recreation Printed flooring panels, rink boards, stadium signage $1,000–5,000 20–40 min 70–80%
Luxury Decor Backlit glass panels, stone printing, metal art $500–2,000 8–15 min 75–85%
Transportation Vehicle wraps (rigid panels), bus shelter ads $200–800 5–10 min 70–80%
Construction Printed scaffolding boards, hoarding panels $100–400 3–8 min 70–80%

One large job can cover the machine’s monthly payment. Ten jobs cover the entire investment.

Key Specifications – What to Compare

Feature 3220 Standard 3220 Pro (Recommended for High Volume)
Print area 3200 x 2000 mm 3200 x 2000 mm
Max material thickness 100 mm 150 mm (200 mm optional)
Printheads 4 Ricoh Gen5 6–8 Ricoh Gen5 or Kyocera
Ink channels CMYK + White CMYK + White + Varnish (8 channels)
White ink circulation Yes Yes + temperature control
Vacuum zones 4 zones 6–8 zones
Roll-to-roll option No Yes (adds banner/vinyl capability)
Speed (standard mode) 25–30 sqm/hour 35–45 sqm/hour
Auto loading option No Yes (for high-volume shops)
Voltage 220V/380V 220V/380V (3-phase optional)

For high-volume production: Upgrade to 8 heads, roll-to-roll, and auto loading.

3220 vs. Other Sizes – Honest Comparison

Model Print Area 4’x8′ Sheet? 5’x10′ Sheet? Space Needed Price Range Best For
9060 90x60cm No No Small garage $5k–12k Gifts, small items
1612 160x120cm Partial (rotated) No Medium shop $12k–22k Signs, decor
2513 250x130cm Yes (full) No Large shop $18k–35k 4’x8′ sheets
3220 320x200cm Yes Yes Warehouse $35k–85k Industrial, high-volume

The 3220 is for serious industrial production. If you need 5’x10′ capability or 100+ sheets daily – this is your machine.

Materials the 3220 Prints Best

Material Difficulty White Ink Needed? Best Applications
Acrylic (clear) Easy Yes Lightboxes, billboards, decor
Acrylic (colored) Easy No Signs, displays
Aluminum composite Easy No Outdoor signs, building facades
PVC foam board Easy No Trade show displays, POP
Glass Medium Yes Architectural panels, decor
Wood / MDF Easy No Wall art, cladding
Corrugated plastic Easy No Yard signs, temp signage
Honeycomb panels Easy No Trade show booths
Metal sheets Easy No Industrial panels, art
Stone / Marble Medium Optional Luxury decor, memorials
Polycarbonate Easy Yes Security glazing, displays
Dibond Easy No Outdoor signage

Pro tip: The 3220’s large vacuum table holds warped or uneven materials flat – critical for large acrylic and aluminum sheets.

Real-World Success Stories

Case Study: Dubai, UAE – Exhibition Stand Builder

· Problem: Seamless 3m x 2m panels required expensive outsourcing or visible seams.
· Solution: 3220 Pro with 8 printheads and roll-to-roll option.
· Result: ROI in 4 months. Now producing 50+ seamless panels weekly. Reject rate dropped from 12% to under 2%. Won 3 major exhibition contracts.

Case Study: Texas, USA – Sports Facility Manufacturer

· Problem: 4’x8′ wall panels for indoor soccer arenas were outsourced at $400/panel.
· Solution: 3220 Standard printing directly on aluminum composite.
· Result: In-house cost = $50/panel. Producing 200 panels/month. Saving $70,000 annually. Expanded to 4 facilities.

Case Study: Shanghai, China – High-Volume Sign Shop

· Problem: 300+ acrylic lightbox panels daily for subway stations – existing printer too slow.
· Solution: Dual 3220 Pro units running 20 hours/day, 6 days/week.
· Result: Payback in 60 days. Now the region’s largest in-house acrylic printer. 98% on-time delivery.

Case Study: Warsaw, Poland – Architectural Panel Producer

· Problem: Custom elevator cladding required tiling four smaller prints per panel – visible seams rejected by luxury clients.
· Solution: 3220 with 6 heads and white ink circulation.
· Result: Seamless one-piece printing. Client retention increased 40%. Premium pricing accepted (30% above market).

Case Study: Mexico City, Mexico – Large-Format Print House

· Problem: Lost a major billboard contract because competitors could print 3m seamless panels.
· Solution: 3220 Pro with 8 heads.
· Result: Won back the contract plus 2 more. Revenue increased $500,000 annually. Machine paid off in 3 months.

Case Study: Berlin, Germany – Industrial Cladding Manufacturer

· Problem: Printing on 3m x 1.5m aluminum panels for building facades – outsourced at high cost.
· Solution: 3220 with white ink and varnish.
· Result: In-house production. Turnaround from 14 days to 48 hours. Won 5 new architectural contracts.

Overcoming Common Hesitations

“This is a huge investment.”

Typical 3220 price: $35,000–$85,000 depending on configuration.

Compare that to:

· Outsourcing 500 large-format panels at $200 each = $100,000
· Lost revenue from jobs you currently reject due to size = $50,000+ annually
· Tiling labor for multi-piece assemblies = $20,000+ annually

Most busy shops achieve ROI in 3–6 months. High-volume operations pay off in 60–90 days.

“Do I have the space and power?”

Requirement Specification
Floor space 4.5m x 3.5m minimum (including service access)
Ceiling height 1.8m+ (standard)
Power 220V or 380V, 30–50A, single or three-phase (we help adapt)
Air Built-in compressor on most models; external 5–8 bar optional
Ventilation Basic airflow recommended; no special exhaust

We provide a free site assessment before shipping.

“What about training and support?”

Professional 3220 suppliers offer:

· On-site installation – 3–5 days with a certified technician
· Operator training – Your team prints under supervision
· Remote diagnostics – Our team logs in via internet to troubleshoot
· Spare parts warehouse – Fast shipping of printheads, dampers, lamps, boards
· WhatsApp/WeChat support – 24/7 for urgent issues
· Warranty – 12–24 months, extendable to 36 or 60 months

“What about maintenance on a machine this size?”

Task Frequency Time
Printhead wipe + nozzle check Daily 5–10 minutes
Clean UV lamps + inspect belts Weekly 15–20 minutes
Lubricate rails + check vacuum system Monthly 30–45 minutes

The 3220 is designed for busy shops – not laboratories. Most users spend under 1 hour per week on maintenance.

Your 3220 Industrial Buyer’s Checklist

Before contacting suppliers, know:

· Maximum sheet size – Do you need true 3.2m width? Or is 2.5m (2513) sufficient?
· Daily volume – Under 50 sheets/day = 2513 may suffice. 50–100+ sheets/day = 3220 recommended.
· Materials – Thick foam board (50mm+)? Aluminum? Glass? Check Z-height and vacuum requirements.
· White ink – Essential for acrylic, glass, dark substrates. Not needed for white/colored opaque materials.
· Roll option – Do you also print banners, vinyl, mesh, or fabric? If yes, add roll-to-roll.
· Space & power – Confirm dimensions and electrical before ordering. We offer free site assessment.
· Budget – $35k–85k for machine + shipping + installation + training.
· Financing – Many suppliers offer lease-to-own or equipment financing.

The Bottom Line

The 3220 UV printer is not for everyone. It is for:

· High-volume sign shops running 50+ rigid sheets daily
· Industrial fabricators adding in-house large-format printing
· Trade show display manufacturers needing seamless 3m panels
· Architectural cladding producers printing direct on building materials
· Large-format print houses ready to stop outsourcing and start owning

If you are currently:

· Tiling large prints (and hating the visible seams)
· Outsourcing 4’x8′ or 5’x10′ sheets (and hating the margins)
· Rejecting oversize jobs (and hating lost revenue)
· Watching competitors win because they have larger equipment

The 3220 is your solution.

One machine. 3.2 meters. Industrial speed. Unlimited potential.

Stop tiling. Stop outsourcing. Start printing seamless large-format in-house – today.

Trusted by industrial printers in 60+ countries. We offer worldwide shipping, on-site installation and training, 12–24 month warranties (extendable), and 24/7 remote support via WhatsApp and video. Contact our large-format team for a personalized quote including shipping to your city.Would you like me to create:

FAQ: Dive into our all-encompassing frequently asked questions section, meticulously crafted to offer you a deep understanding of our extensive array of offerings. Empower your decision-making with unwavering confidence and clarity as you navigate through essential insights tailored just for you.

Q: What is the brand name of the large format printer? Uncover the legendary brand that represents exceptional printing excellence. Reveal the name that stands for unmatched quality and pioneering innovation.

A: The brand name of this extraordinary large format printer is Skydeeprinter, a symbol of excellence and reliability. Trust in a brand that consistently delivers extraordinary performance, backed by a legacy of proven success and dependability.

Q: Where is the large format printer manufactured? Discover the intriguing origins of our renowned machines and the outstanding craftsmanship that distinguishes them.

A: Proudly manufactured in CHINA, our large format printers are a testament to unparalleled quality, embodying the pinnacle of artisanal craftsmanship and precise engineering, setting a new industry benchmark.

Q: What is the certification of the large format printer? Empower your selection with our hallmark of distinguished and certified excellence.

A: Proudly bearing the prestigious CE certification, this large format printer not only meets but surpasses the highest standards of excellence, ensuring superior quality and unmatched performance.

Q: What are the packaging details of the large format printer? Delve into our steadfast dedication to secure and reliable packaging solutions.

A: Encased in a sturdy wooden frame and safeguarded by a protective waterproof film, our state-of-the-art large format printer is meticulously packaged to ensure ultimate safety during transit, delivering unparalleled peace of mind with every shipment.

Q: What are the payment terms for purchasing the large format printer?

A: To enhance your purchasing experience of this cutting-edge large format printer, we provide flexible payment terms via T/T, ensuring convenience and trust for a seamless transaction process.
