3.2m x 2.0m of unlimited possibilities — print on wood, glass, metal, acrylic, stone, and more with speed, precision, and eco-friendly LED curing.

The global UV inkjet printer market is surging, driven by growing demand for customized signage, home décor, and industrial decoration. At the heart of this expansion lies a machine that has become the gold standard for industrial-scale flatbed printing: the 3220 UV Printer .

With a massive 3.2m x 2.0m (approximately 10.5ft x 6.6ft) bed, this wide-format UV flatbed printer is transforming how businesses approach signage, furniture design, architectural glass, and custom fabrication . Whether you’re in São Paulo, Shanghai, or Stockholm, the 3220 UV printer unlocks revenue streams you never knew existed.

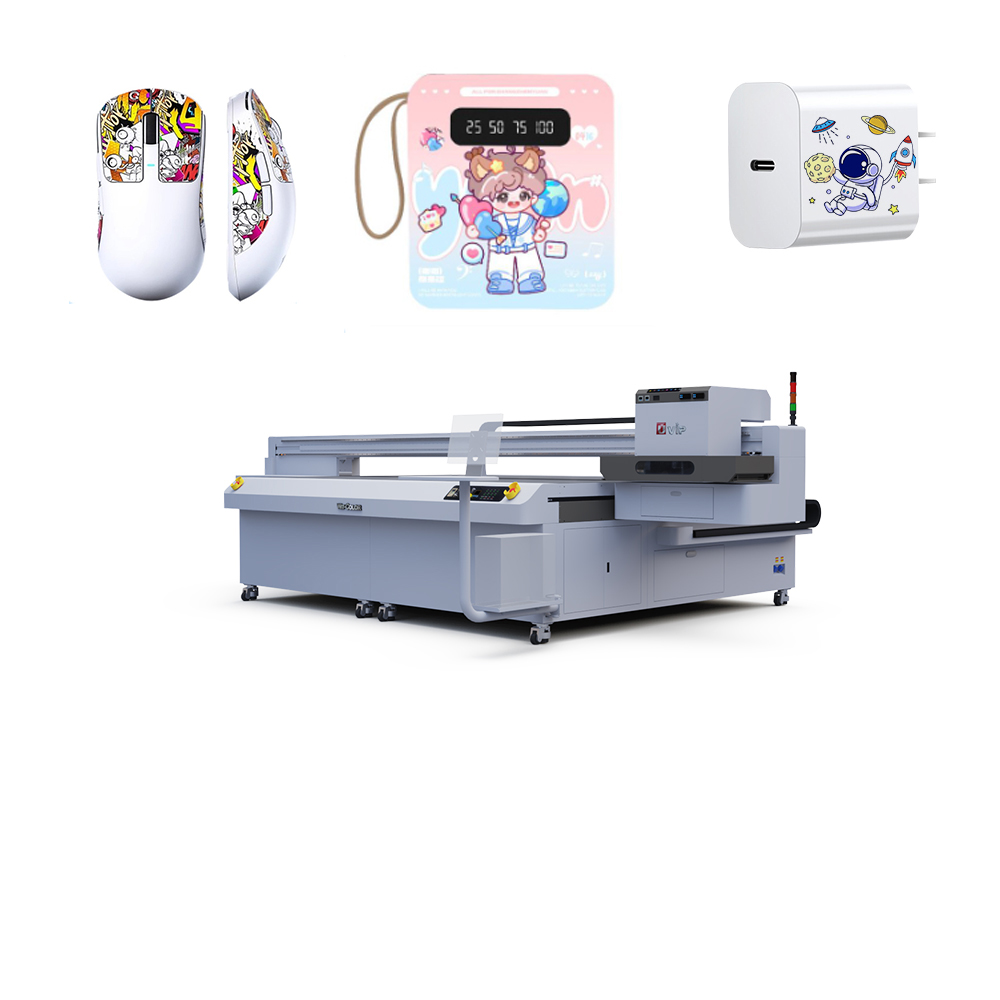

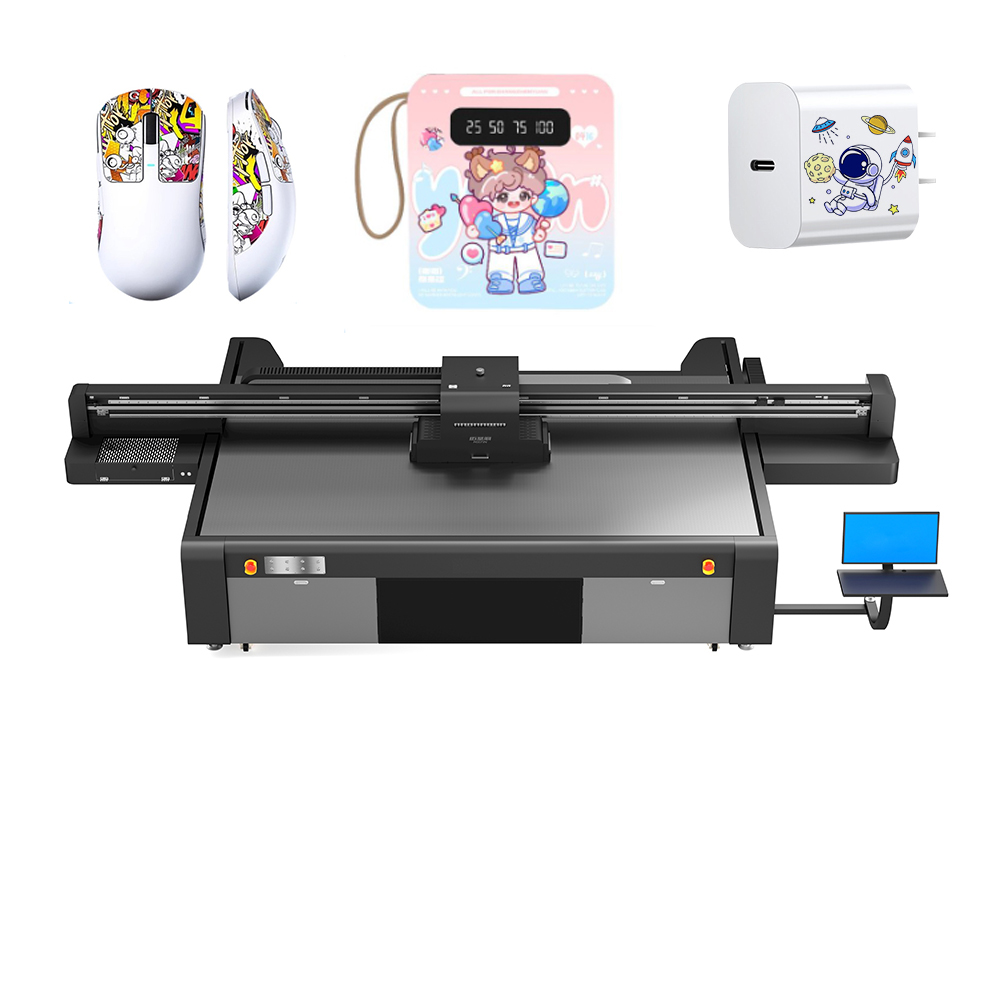

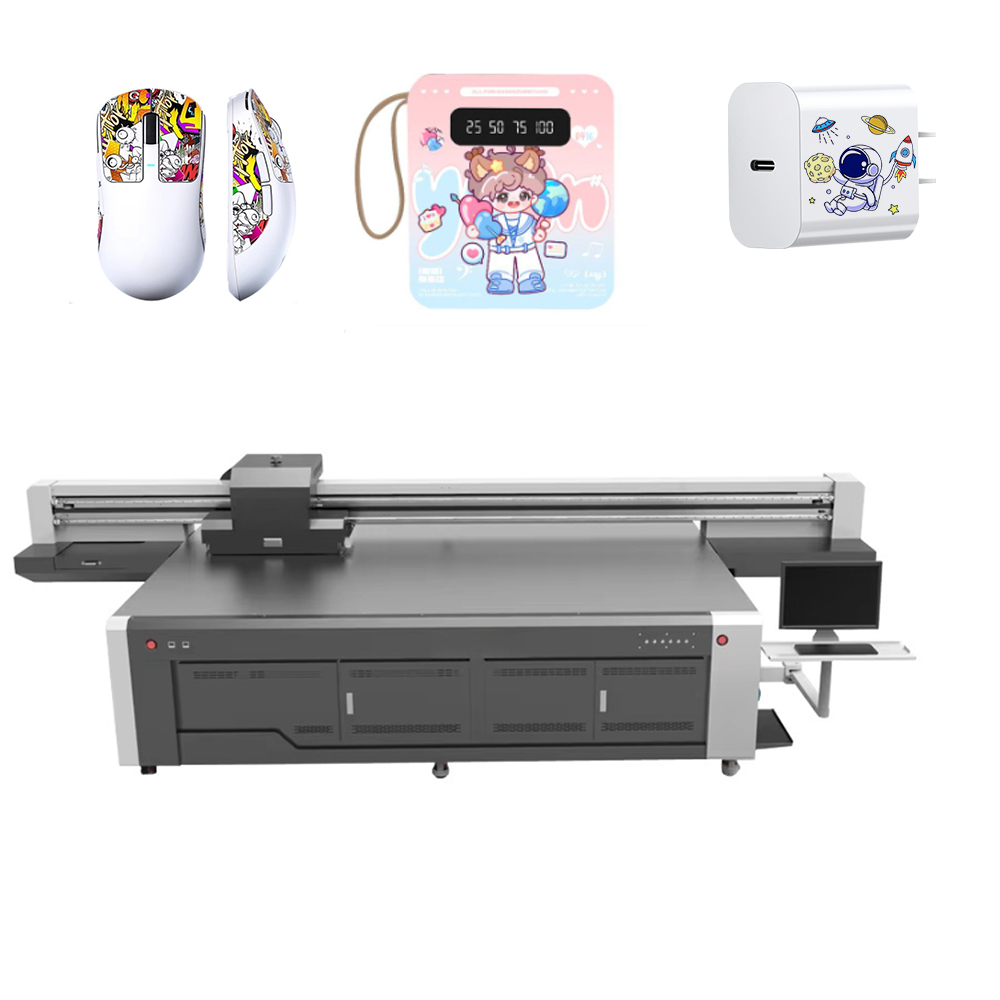

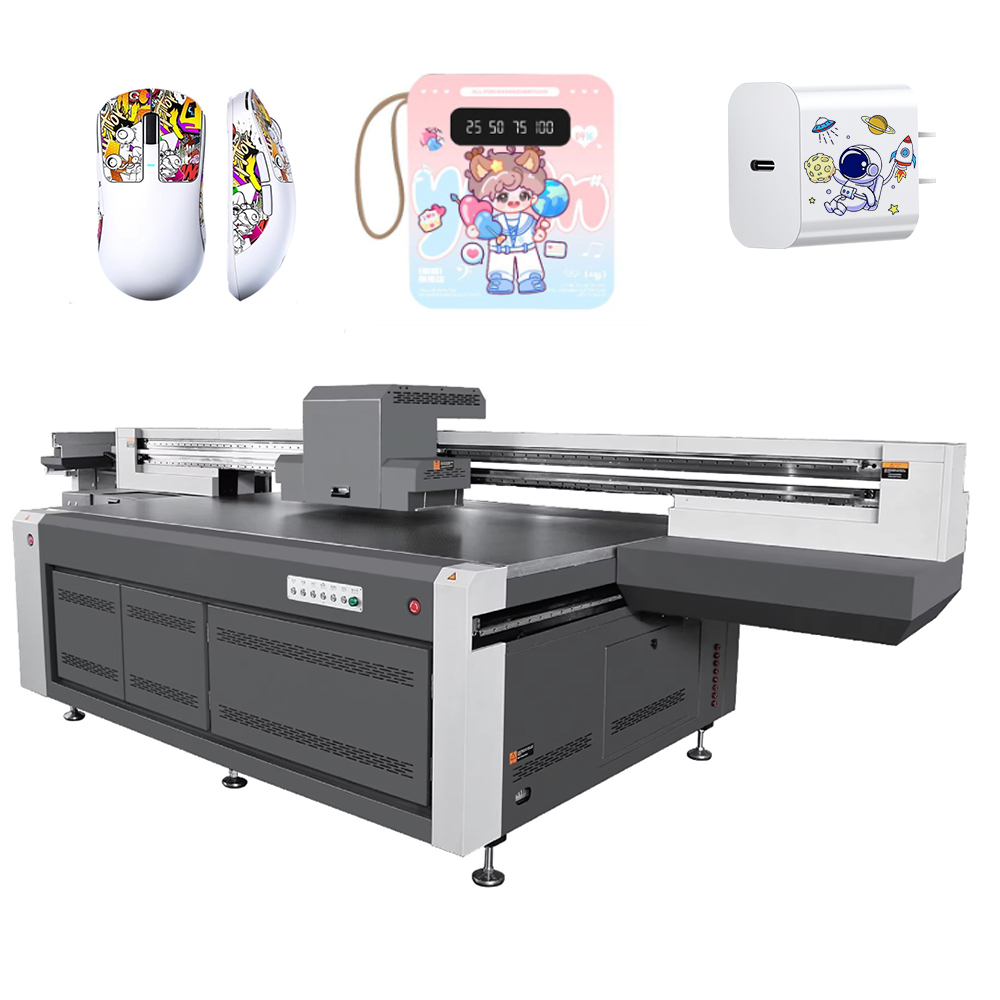

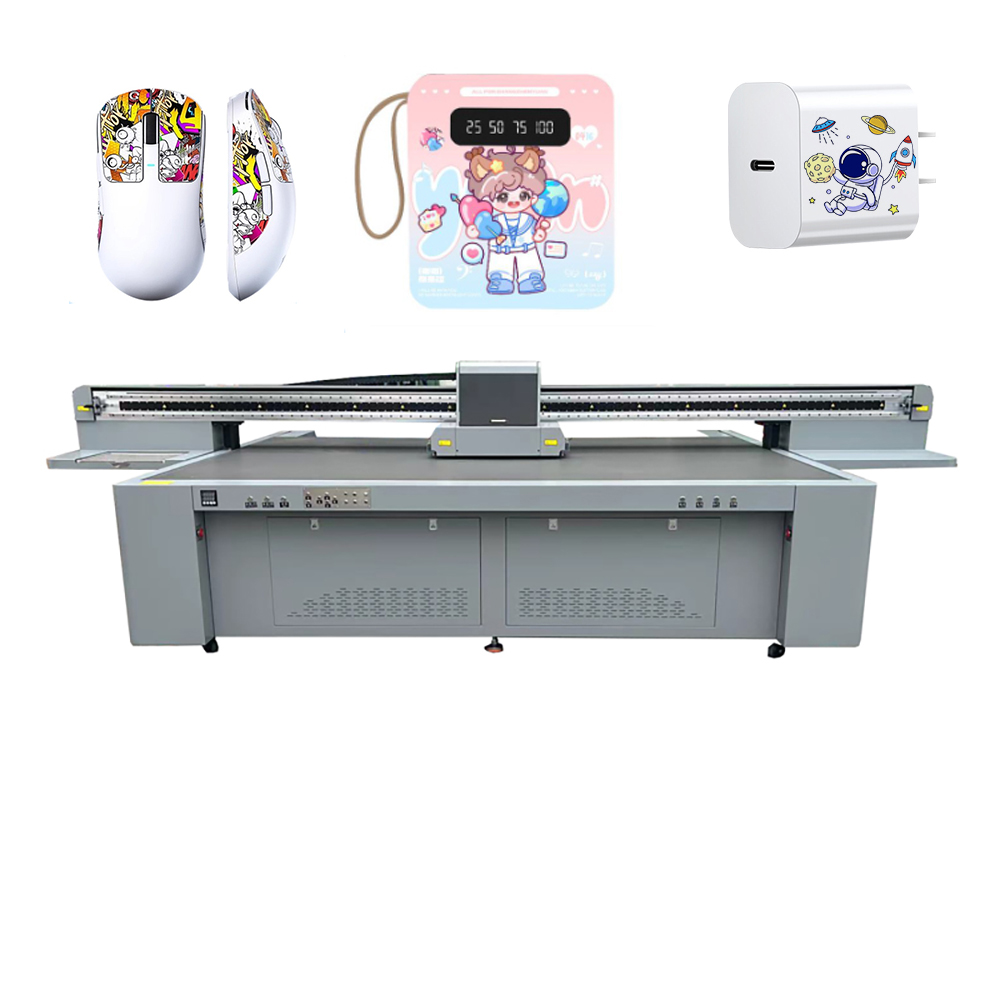

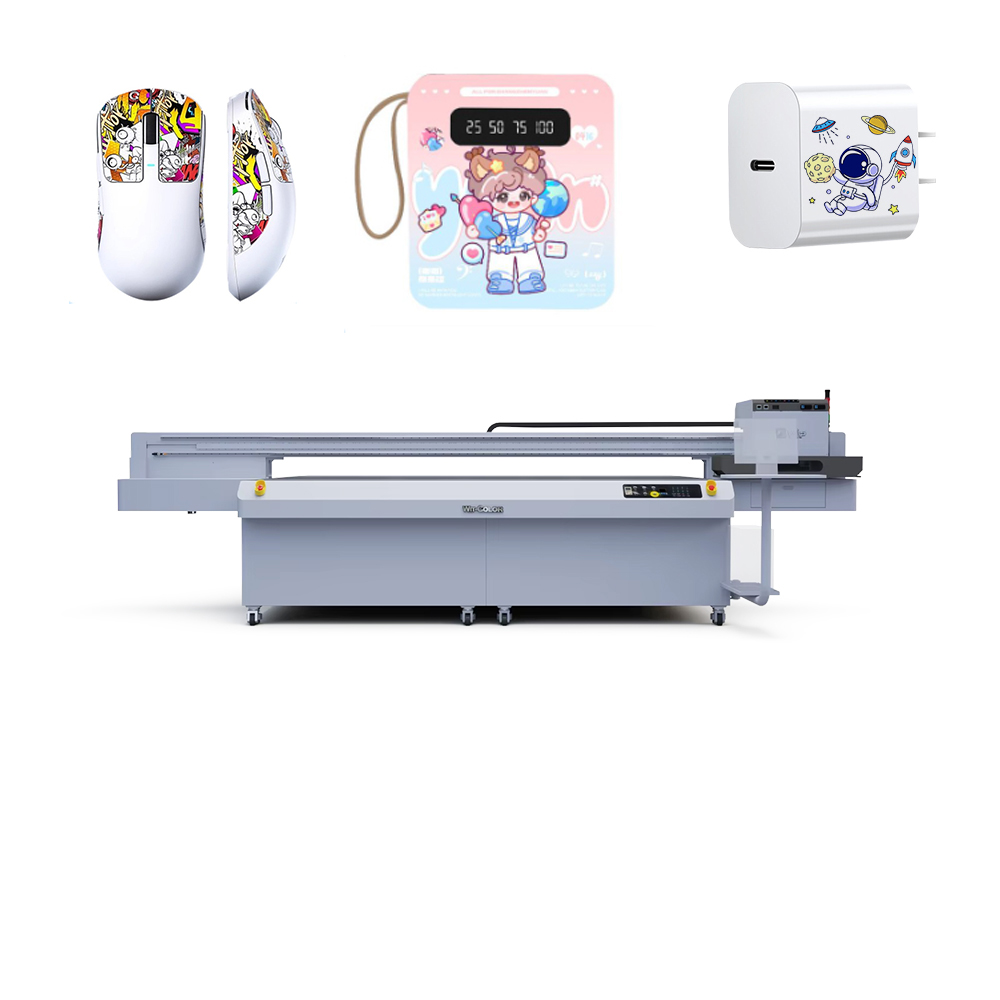

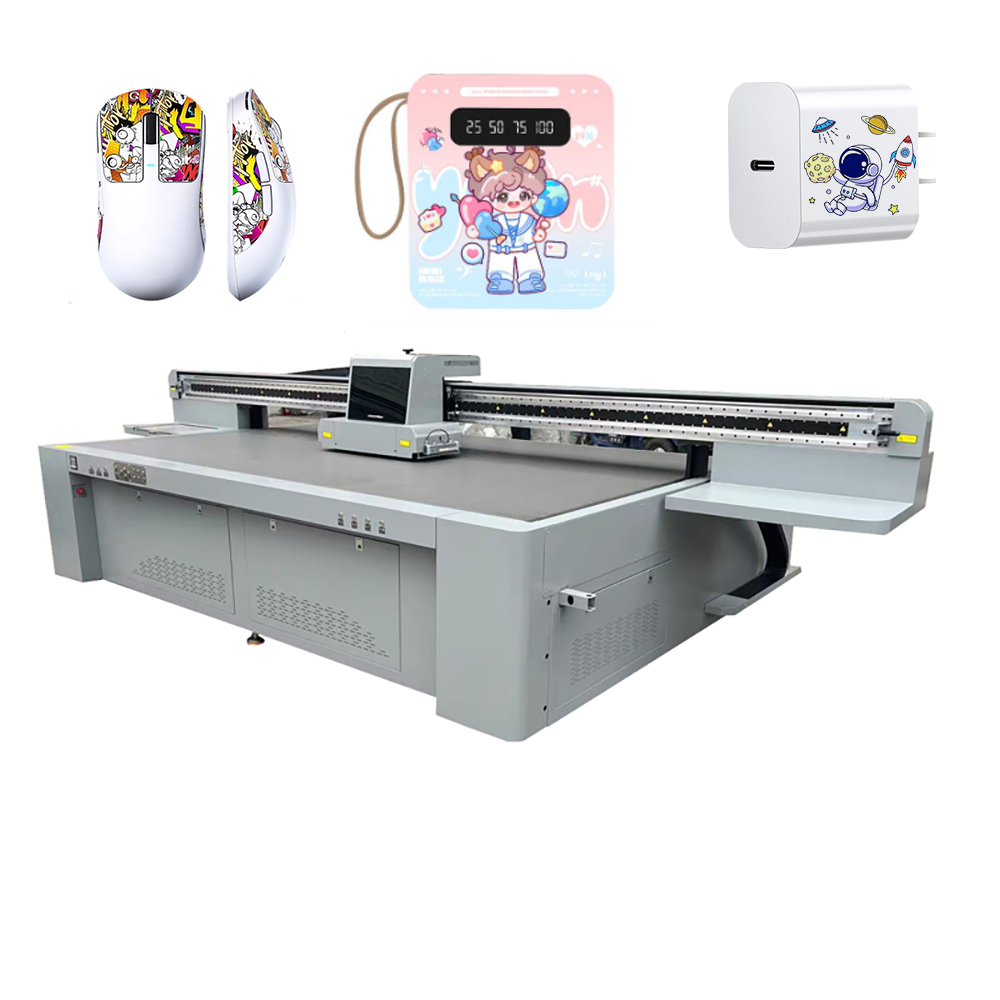

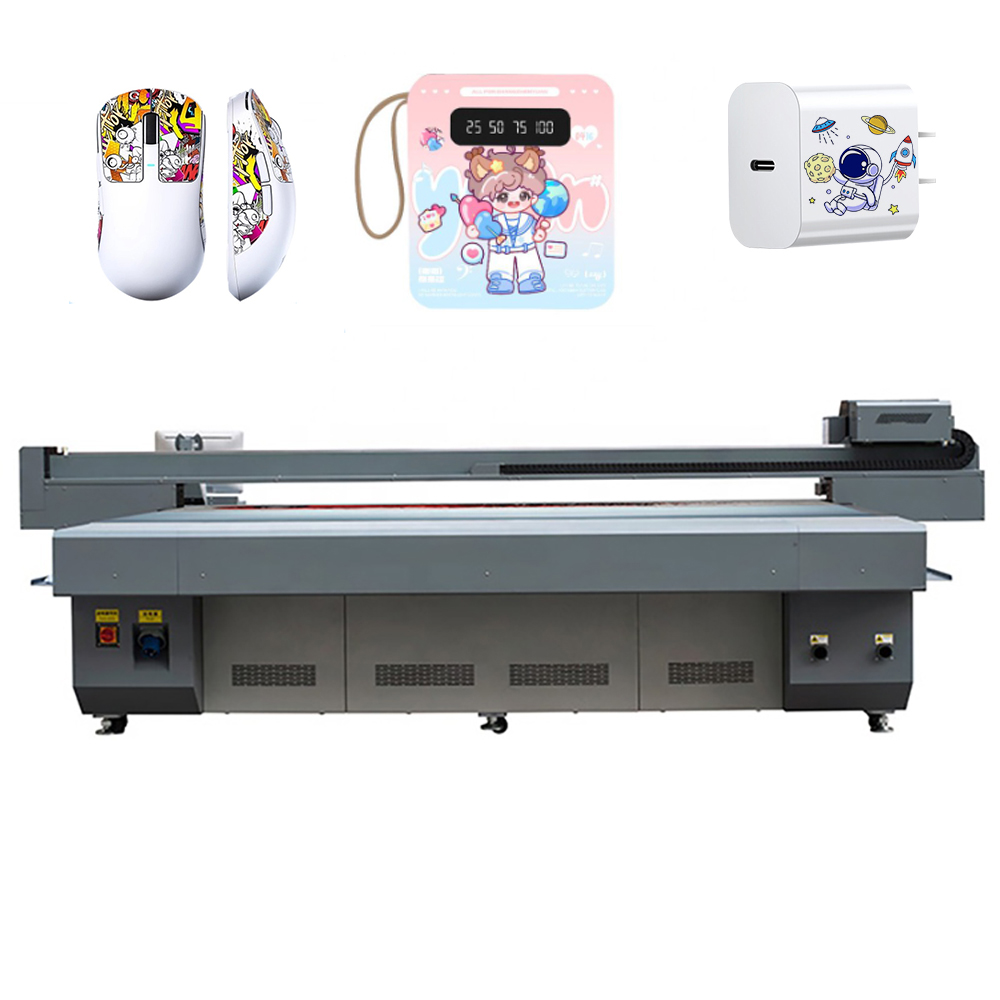

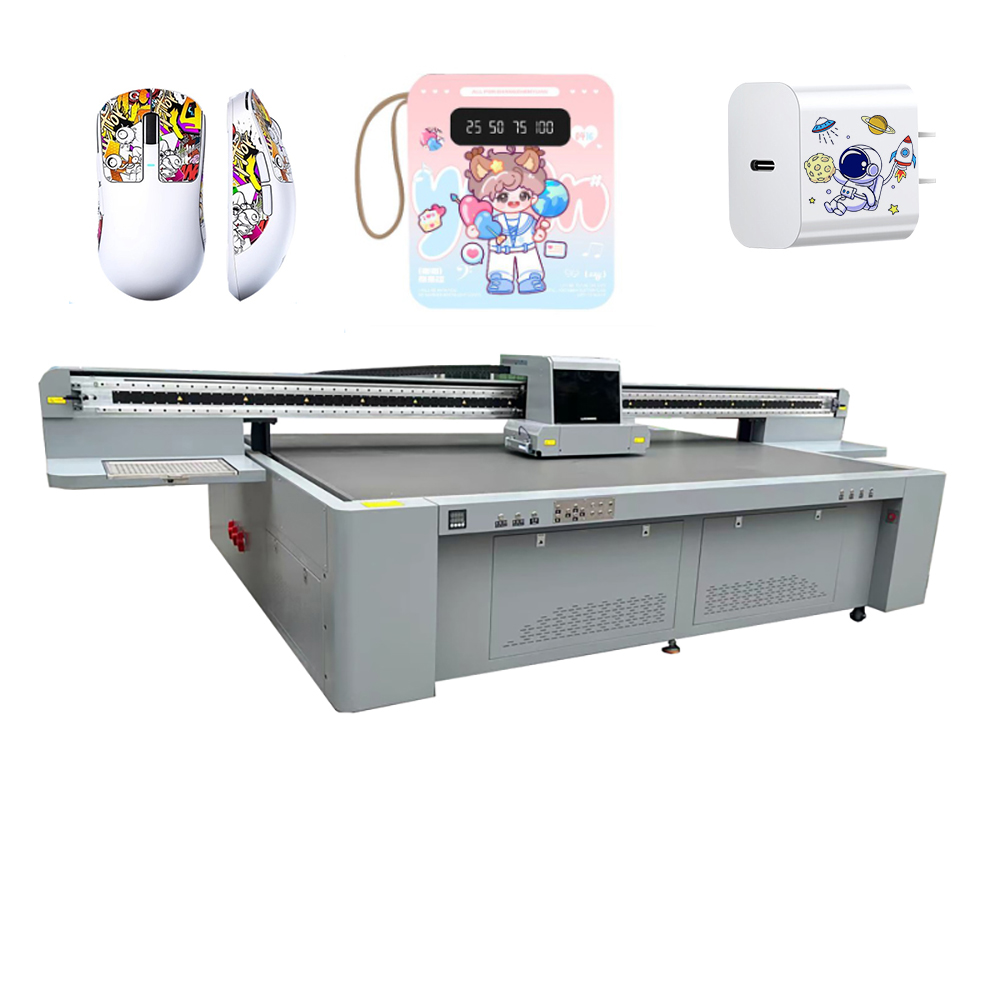

What Is a 3220 UV Flatbed Printer?

The “3220” designation refers to the printer’s maximum print area: 3200mm × 2000mm (126 inches × 79 inches) . This is a UV flatbed printer, meaning it uses ultraviolet light to instantly cure (dry) inks as they are deposited onto the substrate. Unlike roll-to-roll printers limited to flexible materials, a flatbed printer holds rigid materials stationary on a vacuum table while the printhead moves across them .

Core Specifications

Specification Typical Range Benefit
Print Area 3200 × 2000 mm Fits oversized panels, doors, countertops
Media Thickness Up to 100-200 mm Print on thick objects, even with relief
Resolution Up to 1200-2400 dpi Sharp, detailed prints on any surface
Printheads Ricoh GEN5/GEN6, Kyocera Configurable for speed or precision
Ink Colors CMYK + White + Varnish + LcLm Unlimited color possibilities
Curing LED UV (low heat, instant) Energy-efficient, safe for heat-sensitive materials
Weight 1,200-3,360 kg Solid, vibration-free construction

Why Global Customers Are Investing in the 3220 UV Platform

1. One Machine, Infinite Materials — Say “Yes” to Every Client

The 3220 UV printer is the undisputed champion of material versatility. It prints directly onto virtually any flat surface, including:

· Wood & Composites: Plywood, MDF, particle board, solid wood
· Glass & Mirror: Tempered, frosted, laminated
· Stone & Tile: Marble, granite, slate, ceramic
· Metal & Aluminum: Composite panels (Dibond), sheet metal
· Acrylic & Plastics: Plexiglass, PVC, polycarbonate, ABS
· Textiles & Leather: Direct onto fabric, leather hides
· Foam Board & Sintra: Lightweight signage and display materials

The business impact: You stop being a “sign shop” or a “furniture decorator.” You become a universal print provider — capable of handling any rigid substrate a client brings through the door.

2. Massive Format = Massive Opportunities

The 3220’s 3.2m x 2.0m bed accommodates standard industrial sheet sizes:

· Full 4’x8′ plywood or MDF sheets (no cutting required before printing)
· Countertop slabs for kitchens and bathrooms
· Glass panels for commercial partitions
· Door skins for custom entryways
· Multiple smaller pieces arranged simultaneously on the bed

3. LED UV Curing — Faster, Cooler, Greener

Modern 3220 printers use LED UV curing technology, delivering game-changing advantages :

· Instant drying: Prints exit 100% dry and ready for immediate handling, assembly, or shipping
· No heat damage: Low-temperature curing protects heat-sensitive materials from warping
· Energy savings: LED systems consume significantly less electricity than conventional UV lamps
· Zero ozone emissions: UV LED lamps do not convert oxygen into harmful ozone, so no extraction system is required
· Long lifespan: LED lamps last over 10,000 hours — no expensive bulb replacements

4. White Ink & Varnish — The Secret to Premium Finishes

Top-tier 3220 configurations include white ink and clear varnish alongside standard CMYK (and often light cyan/light magenta for smoother gradients) .

Application How White Ink Helps How Varnish Helps
Glass printing White underbase makes colors pop on transparent surfaces High-gloss or matte selective coating
Dark substrates Prints bright images without needing white materials Scratch protection
Backlit signage White layer creates diffusion for even illumination Anti-fingerprint finish
Home décor Enables vibrant designs on dark MDF or wood panels Texture effects and durability

With 6-8 color channels, your 3220 becomes a fine art production machine, not just an industrial printer.

5. Industrial-Grade Engineering — Built to Last

Leading 3220 models incorporate heavy-duty construction for reliability under continuous operation :

· Independent 4-zone vacuum adsorption platform driven by dual vacuum pumps to hold materials securely
· Automatic head height detection for precision on varying material thicknesses
· Anti-crash and continue print system to prevent damage and minimize downtime
· White ink recirculation system with automatic stirring to prevent settling
· Japanese noise-free guide rails for smooth, quiet movement

6. Industrial Speed — From Prototypes to Production Runs

3220 UV printers offer speed configurations for every volume level:

Configuration Speed Best For
Entry-level (2-4 heads) 20-50 m²/hour Prototyping, small shops, low volume
Mid-range (6-8 heads) 50-90 m²/hour Growing print-for-pay businesses
Industrial (16 heads) Up to 154 m²/hour High-volume production, 24/7 operations

AndresJet’s AJ3220EX with 16 RICOH GEN5 heads achieves 154 m²/hour in draft mode — enough to cover over 1,650 square feet per hour .

7. Future-Proof Compliance — CE Certified

Leading 3220 models carry CE certification, ensuring compliance with international safety standards . This is critical for:

· EU markets (CE marking required)
· Global compliance (safety and quality assurance)

Who Is Buying 3220 UV Printers Worldwide?

Industry Applications Why 3220
Signage & Display Billboards, retail POP displays, trade show booths Handles oversized rigid substrates; high speed
Furniture Manufacturing Custom cabinet doors, table tops, headboards Accommodates door panels and full sheets
Architectural Glass Decorative partitions, shower doors, branded office glass White ink for opacity; UV durability
Stone & Tile Fabrication Backsplashes, flooring, monuments Direct printing on marble, granite, slate
Home Décor Wall panels, MDF art, custom furniture White/varnish upsell capabilities
Packaging Short-run displays, prototypes Instant curing; no smudging

The ROI: How Fast Do You Recover Your Investment?

Equipment Investment (USD)

· Entry-level 3220 (2-4 heads): $15,000 – $30,000
· Mid-range 3220 (6-8 heads): $30,000 – $80,000
· Industrial 3220 (16 heads): $200,000 – $300,000

Operating Costs

Cost Category Estimated Annual Cost Per sqm (at 50,000 sqm/year)
UV Ink (with 30% savings) $25,000 $0.50
Electricity $5,000 $0.10
Labor (2 operators) $60,000 $1.20
Maintenance $10,000 $0.20
Total Operating $100,000 $2.00

Revenue Potential

· Market rate per m² for UV printing: $50 – $80 (varies by market and application)
· Ink cost per m²: $0.40 – $0.80 (with 30% savings)
· Profit per m²: $48 – $78+

Break-Even Analysis

For an industrial 3220 at $200,000–$300,000 :

· Output: 154 m²/hour × 8 hours/day × 250 days × 70% utilization = 215,600 m²/year
· Annual revenue: 215,600 × $50 = $10.78M gross
· Annual net: After $100,000 operating costs = $10.68M
· Payback period: 12-18 months

Key Savings Accelerating ROI

· 30% ink reduction via smart grayscale printing
· 40% setup time cuts via automatic material feeding and head height detection
· No screens or setup fees (unlike screen printing, which requires $500/job screens and 2-hour setups)
· 8-year spare parts guarantee reduces total cost of ownership

3220 UV vs. Alternatives: Why It Wins

Feature 3220 UV Flatbed 4’x8′ Flatbed (2513) Roll-to-Roll Solvent Screen Printing
Max print size 3.2m × 2.0m 2.5m × 1.3m Unlimited length Unlimited
Oversized sheets (3.2m+) ✅ Single pass ❌ Limited ❌ No ✅ Yes
Rigid materials ✅ Direct ✅ Direct (smaller) ❌ No ✅ Yes (setup heavy)
Setup time Minutes Minutes Minutes Hours (screens)
Variable data ✅ Yes ✅ Yes ✅ Yes ❌ No
Minimum order 1 piece 1 piece 1 roll 50+ pieces

The verdict: The 3220 UV printer doesn’t replace roll-to-roll for banners or screen printing for massive uniform runs. But for large-format rigid substrates at industrial volumes — it has no equal.

What to Look for When Buying a 3220 UV Printer (Global Buyer’s Guide)

✅ Printhead Technology

· Ricoh GEN5 / GEN6 – Industry standard, excellent for white ink, durable
· Kyocera – High grayscale capability, fine droplet control
· Multiple head configs – 2-16 heads for scalability

✅ Vacuum Bed Quality

· Look for 4-zone vacuum adsorption with dual pumps for heavy materials up to 100kg
· Ensure the table is precision-ground flat for consistent print quality

✅ Ink Configuration

· Minimum: CMYK + White
· Recommended: CMYK + White + Varnish
· Premium: CMYKLcLm + White + Varnish

✅ Maximum Material Thickness

· Standard: 100mm (4 inches)
· Upgraded: 200mm (8 inches) for thicker objects

✅ Certifications

· CE – European safety standard

✅ Support & Training

· Does the manufacturer offer on-site installation and 3 days of training?
· Is there a local service network or 24/7 remote support?
· Are spare parts (printheads, LED lamps, boards) readily available?
· 8-year parts guarantee offered by some manufacturers

✅ Pre-purchase Checklist

· ✅ Get sample prints on YOUR materials (wood, glass, acrylic, metal) before buying
· ✅ Ask for a live or video demo showing speed and quality
· ✅ Verify ink adhesion with a scratch test
· ✅ Request references from customers in your industry

Ready to Dominate the Large-Format Market?

The 3220 UV flatbed printer is not just a machine — it’s a business transformation tool. It allows you to:

· Say “yes” to jobs you previously outsourced or rejected
· Print on materials you never thought possible — glass, wood, metal, stone
· Deliver oversized panels in minutes, not days
· Offer white ink and varnish finishes that command premium prices
· Scale from prototypes to high-volume production runs

Stop turning away large-format rigid substrate jobs. Start printing your future.
