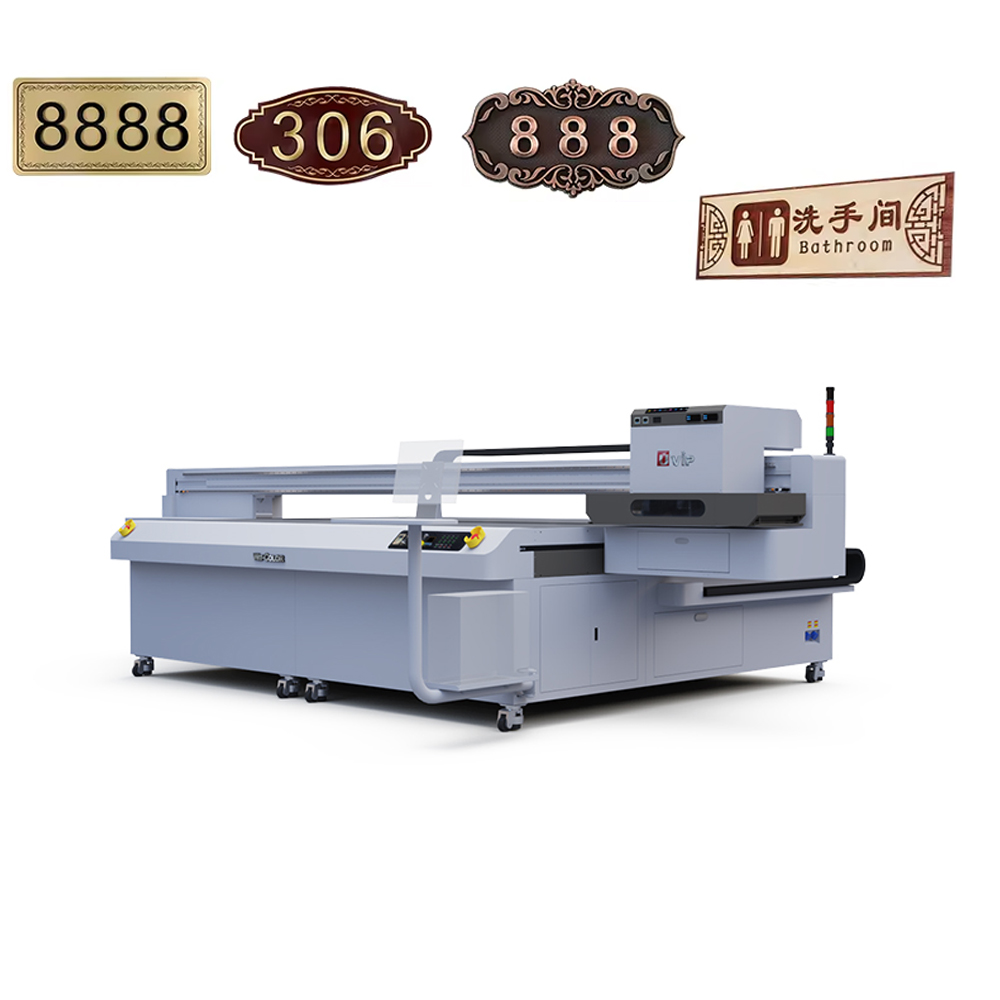

Industrial Scale. Industrial Speed. The 3220 UV Printer – Built for Those Who Print Big and Print Fast.

Subtitle: 3.2 meters x 2.0 meters of seamless, rigid-material printing power. Print on acrylic, aluminum, glass, wood, and more – one piece, no tiling, no outsourcing, no limits.

The Industrial-Scale Problem

You have the clients. You have the space. But your current setup can’t handle:

· Full-sized billboards – 3m+ wide acrylic or aluminum panels
· Seamless trade show displays – One piece, no visible joins
· Large-format architectural panels – Elevator doors, wall cladding
· Industrial parts – Large control panels, machine covers

Outsourcing kills margins. Smaller flatbeds require tiling (and visible seams). Screen printing takes days or weeks.

The 3220 UV printer solves this.

At 3200mm x 2000mm (126″ x 79″), the 3220 prints directly on full-sized rigid materials – in one piece, at production speed, with no seams and no compromises.

Why Industrial Shops Choose the 3220

1. True One-Piece Large Format

No tiling. No seams. No alignment headaches.

The 3220 handles standard industrial sheet sizes effortlessly:

Sheet Size Fits? Margin
4′ x 8′ (1220x2440mm) Yes Ample
5′ x 10′ (1525x3050mm) Yes Good
European 1500x3000mm Yes Perfect
European 2000x3000mm Yes Fits exactly
3m x 2m billboard panels Yes Perfect
Door panels (any size) Yes Easily
Elevator cladding Yes One piece

From stadium billboards to luxury hotel elevator panels – if it fits on the bed, the 3220 prints it flawlessly.

2. Production Speeds That Move Your Business

Speed is profit. The 3220 delivers industrial throughput:

Mode Speed 4’x8′ Sheets/Hour Daily Output (8 hrs)
Draft 40–60 sqm/hour 15–22 sheets 120–176 sheets
Standard 25–35 sqm/hour 9–13 sheets 72–104 sheets
High Quality 12–18 sqm/hour 4–7 sheets 32–56 sheets

At draft speed: Print over 100 full 4’x8′ sheets in a single shift.

That’s true industrial capacity – not marketing hype.

3. Engineered for 24/7 Reliability

The 3220 is purpose-built for production environments:

· Reinforced steel gantry – Rock-solid stability at high speeds
· Precision servo motors – Accurate positioning across 3.2 meters
· Configurable printheads – 2 to 8 Ricoh Gen5 or Kyocera heads
· Automatic height sensing – Detects material thickness, adjusts instantly
· Zoned vacuum table – 6–8 zones, holds warped sheets flat
· Heavy-duty chassis – Zero vibration, even at full speed
· Industrial-grade components – Designed for 24/7 operation

4. Industrial Ink System – Zero Downtime

Nothing kills profit like empty ink carts mid-job:

· Bulk ink containers – 5L to 20L options (days between changes)
· Circulating white ink – Prevents sedimentation – essential for large white areas on acrylic and glass
· Automated cleaning cycles – Scheduled nozzle maintenance during overnight runs
· Low-ink alerts – Real-time notifications to your phone
· Dual ink paths – Switch between ink sets without stopping

Applications That Command Premium Pricing

The 3220 opens high-value markets that smaller printers cannot touch:

Application Products Price (USD) Print Time Margin
Billboards 3m x 2m acrylic outdoor signs $800–2,500 5–10 min 70–80%
Trade Shows Seamless rigid panels, backlit displays $500–3,000 10–20 min 70–80%
Architectural Elevator doors, wall panels, facades $200–800 5–8 min 75–85%
POP Displays Large retail displays, floor graphics $300–1,500 10–15 min 70–80%
Industrial Control panels, machine labels $50–200 1–3 min 75–85%
Sports Flooring panels, rink boards, stadium signs $1,000–5,000 20–40 min 70–80%
Luxury Decor Backlit glass, stone printing, metal art $500–2,000 8–15 min 75–85%

One large job can cover the machine’s monthly payment. Ten jobs cover the entire investment.

Key Specifications

Feature 3220 Standard 3220 Pro (Recommended)
Print area 3200 x 2000 mm 3200 x 2000 mm
Max thickness 100 mm 150 mm (200 mm optional)
Printheads 4 Ricoh Gen5 6–8 Ricoh Gen5/Kyocera
Ink channels CMYK + White CMYK + White + Varnish
White ink circulation Yes Yes + temperature control
Vacuum zones 4 zones 6–8 zones
Roll-to-roll option No Yes
Speed (standard) 25–30 sqm/hour 35–45 sqm/hour
Auto loading No Yes

For high-volume production: Upgrade to 8 heads, roll-to-roll, and auto loading.

Materials the 3220 Prints Best

Material White Ink? Best Applications
Acrylic (clear) Yes Lightboxes, billboards, decor
Acrylic (colored) No Signs, displays
Aluminum composite No Outdoor signs, building facades
PVC foam board No Trade show displays
Glass Yes Architectural panels, decor
Wood / MDF No Wall art, cladding
Metal sheets No Industrial panels, art
Stone / Marble Optional Luxury decor, memorials

Real-World Success Stories

Case Study: Dubai, UAE – Exhibition Stand Builder

· Problem: Seamless 3m x 2m panels – expensive outsourcing or visible seams.
· Solution: 3220 Pro with 8 heads.
· Result: ROI in 4 months. Reject rate 12%→2%. Won 3 major contracts.

Case Study: Texas, USA – Sports Facility Manufacturer

· Problem: 4’x8′ panels outsourced at $400/panel.
· Solution: 3220 Standard printing on aluminum composite.
· Result: In-house cost $50/panel. Saving $70,000 annually.

Case Study: Shanghai, China – High-Volume Sign Shop

· Problem: 300+ acrylic lightbox panels daily – printer too slow.
· Solution: Dual 3220 Pro units, 20 hours/day.
· Result: Payback in 60 days. 98% on-time delivery.

Case Study: Warsaw, Poland – Architectural Panels

· Problem: Tiling 4 prints per panel – visible seams rejected.
· Solution: 3220 with white ink and varnish.
· Result: Seamless printing. Client retention +40%. Premium pricing (+30%).

Case Study: Mexico City, Mexico – Large-Format Print House

· Problem: Lost billboard contract – couldn’t print 3m seamless.
· Solution: 3220 Pro with 8 heads.
· Result: Won back contract +2 more. Revenue +$500,000/year.

Overcoming Hesitations

“This is a huge investment.”

$35,000–85,000. Compare to:

· Outsourcing 500 panels @ $200 = $100,000
· Lost revenue from rejected jobs = $50,000+/year
· Tiling labor = $20,000+/year

Most busy shops achieve ROI in 3–6 months. High-volume operations in 60–90 days.

“Do I have the space and power?”

Requirement Specification
Floor space 4.5m x 3.5m minimum
Ceiling height 1.8m+
Power 220V/380V, 30–50A
Air Built-in or external 5–8 bar
Ventilation Basic airflow recommended

Free site assessment before shipping.

“What about training and support?”

· On-site installation – 3–5 days with technician
· Operator training – Your team prints under supervision
· Remote diagnostics – Internet troubleshooting
· Spare parts – Fast worldwide shipping
· Warranty – 12–24 months, extendable to 60

“What about maintenance?”

Task Time
Daily: Printhead wipe + nozzle check 5–10 min
Weekly: Clean UV lamps + inspect belts 15–20 min
Monthly: Lubricate rails + vacuum system 30–45 min

Less than 1 hour per week.

Your 3220 Buyer’s Checklist

· Need true 3.2m width? Or is 2.5m (2513) sufficient?
· Daily volume? 50–100+ sheets/day = 3220
· Need white ink? (Yes for acrylic/glass)
· Need roll-to-roll? (Yes for banners/vinyl)
· Space: 4.5m x 3.5m minimum
· Power: 220V/380V, 30–50A
· Budget: $35k–85k + shipping + installation

The Bottom Line

The 3220 UV printer is for:

· High-volume sign shops – 50+ rigid sheets daily
· Industrial fabricators – In-house large-format printing
· Trade show manufacturers – Seamless 3m panels
· Architectural cladding producers – Building materials
· Large-format print houses – Stop outsourcing

If you are currently:

· Tiling large prints (visible seams)
· Outsourcing 4’x8′ or 5’x10′ sheets (losing margins)
· Rejecting oversize jobs (losing revenue)
· Watching competitors win with larger equipment

The 3220 is your solution.

Stop tiling. Stop outsourcing. Start printing seamless large-format in-house – today.
