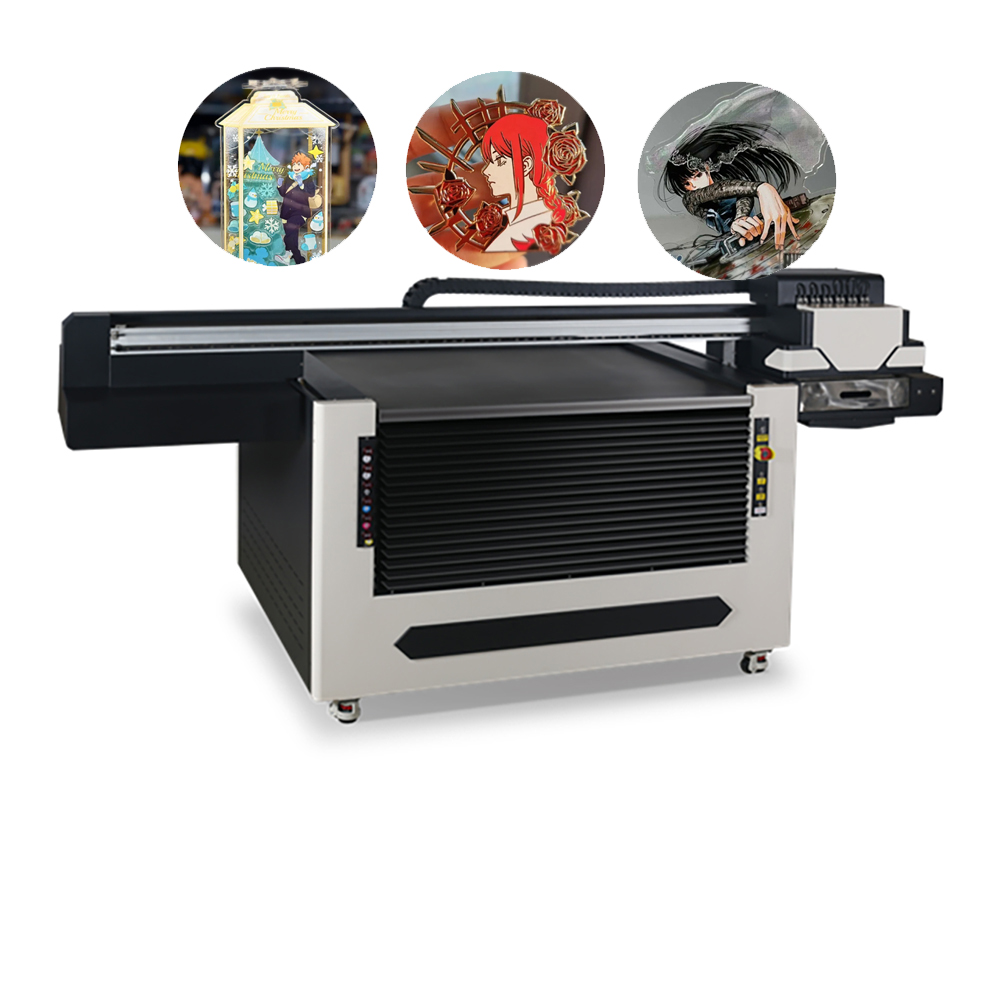

High Speed Decal 1612 UV Flatbed Printer for Printing on Bags Ceramic Tile
Headline: UV Printer 1612 – The Goldilocks Size for Maximum Versatility
Sub-headline: Big enough for signage and furniture. Small enough for your workshop. Print on acrylic, wood, metal, glass, ceramic, leather, plastic, and more – all with instant UV-LED curing.
The Global Sweet Spot: Why 1.6m x 1.2m Is the Perfect Size
Walk into any sign shop, furniture decorator, or industrial printing facility around the world. You will see a range of UV printer sizes:
Size Best For Limitation
A3 / A2 (small) Gifts, phone cases, small plaques Too small for signage or furniture
1621 (1.6m x 3.1m) Billboards, large signage Too large for many workshops, expensive
1612 (1.6m x 1.2m) Signs, furniture panels, acrylic displays, packaging Just right
The 1612 is the Goldilocks UV printer – not too small, not too large. It fits through standard doorways, requires moderate floor space, and handles 80-90% of commercial UV printing applications.
From a print shop in Istanbul printing restaurant menus to a furniture decorator in Vietnam printing on cabinet doors, the 1612 has become a global bestseller for one reason: it does almost everything well.
What Is the UV Printer 1612?
The 1612 refers to the print bed size: 1.6 meters (1600mm) by 1.2 meters (1200mm).
Specification Typical Range
Print area 1600mm x 1200mm (63″ x 47″)
Max object height 100mm – 200mm (4″ – 8″) depending on model
Print head options Epson XP600, I3200, or industrial Konica/Minolta
Ink configuration CMYK + White + Varnish (up to 6 colors)
Curing UV-LED lamps (instant, no heat)
Weight 400–600 kg
Footprint Approx. 2.5m x 1.8m
Key feature: Most 1612 models are hybrid – they print on both rigid sheets (flatbed mode) and roll media (optional roll-to-roll attachment for vinyl, banner, mesh).
What Is the UV Printer 1612?
The 1612 refers to the print bed size: 1.6 meters (1600mm) by 1.2 meters (1200mm).
Specification Typical Range
Print area 1600mm x 1200mm (63″ x 47″)
Max object height 100mm – 200mm (4″ – 8″) depending on model
Print head options Epson XP600, I3200, or industrial Konica/Minolta
Ink configuration CMYK + White + Varnish (up to 6 colors)
Curing UV-LED lamps (instant, no heat)
Weight 400–600 kg
Footprint Approx. 2.5m x 1.8m
Key feature: Most 1612 models are hybrid – they print on both rigid sheets (flatbed mode) and roll media (optional roll-to-roll attachment for vinyl, banner, mesh).
Why Global Customers Are Choosing the 1612 UV Printer
- The Perfect Size for Commercial Applications
The 1612 fits an extraordinary range of real-world products:
Application Typical Size Fits on 1612?
Acrylic signage 1200mm x 800mm ✅ Yes
Restaurant menu boards 600mm x 900mm ✅ Yes (multiple)
Furniture panels (cabinet doors) 1200mm x 600mm ✅ Yes
Real estate signs 1200mm x 800mm ✅ Yes
Acrylic light boxes 1000mm x 1000mm ✅ Yes
Floor graphics (rigid PVC) 1200mm x 1200mm ✅ Yes
Display stands / POS Various ✅ Yes
Packaging displays Various ✅ Yes
Industrial nameplates Various ✅ Yes
Door panels 2000mm x 800mm ⚠️ Diagonal placement
What doesn’t fit? Full 4′ x 8′ (2440mm x 1220mm) sheets – those require a 1625 or 2030. But for most commercial work, 1600×1200 covers the majority.
“We print 90% of our jobs on the 1612. Only very large signage goes to our bigger machine. The 1612 runs all day, every day.” – Sign shop owner, Spain
- Print on Virtually Any Rigid Material
UV printing requires no pre-treatment, no coatings, no primer.
Material 1612 Performance
Acrylic / Plexiglass Excellent – clear, vibrant, no yellowing
PVC foam board (Sintra, Forex) Excellent – standard signage material
Aluminum composite (Dibond) Excellent – durable outdoor signs
Wood (MDF, plywood, solid) Excellent – furniture, decor, signage
Glass Excellent – with white underbase or direct
Ceramic tile Excellent – backsplashes, coasters, art
Metal (brushed, stainless, aluminum) Excellent – nameplates, industrial labels
Leather / PU Excellent – upholstery panels, bags
Plastic (ABS, PC, PETG, PP) Excellent – industrial parts, displays
Corrugated plastic (Coroplast) Excellent – yard signs, real estate
Stone / Marble Excellent – memorials, gifts, countertop samples
One machine. Unlimited materials.
- LED Curing = No Warping, Lower Energy
Traditional UV printers used mercury arc lamps that generated intense heat – warping thin acrylics and heat-sensitive materials.
UV-LED technology changes everything:
Feature Benefit
Cool-touch curing Print on heat-sensitive materials (thin films, shrink sleeves, foams)
Instant drying Prints exit dry – stack or ship immediately
Low energy 70-80% less power than mercury lamps
Long lamp life 50,000+ hours – years of use
No warm-up time Start printing instantly
Real-world example: A furniture decorator prints directly on cabinet doors with zero heat damage. Before LED, they had to let panels cool for hours.
- White Ink + Varnish for Premium Effects
A true 1612 UV printer offers CMYK + White + Clear Varnish – the professional configuration that allows you to charge premium prices.
Effect How It Works Application
White underbase Print white first, then color Dark acrylic, clear glass, metal
Spot varnish Glossy logo on matte background Luxury packaging, menus
Full gloss overlay Entire print has glossy finish Photos, art prints
Raised / 3D effect Multiple layers of varnish Textured logos, braille, embossed effects
Reverse printing Print on back side of clear material Glass panels, acrylic light boxes
Without white ink and varnish, you are competing on price. With them, you compete on quality.
- Hybrid Capability = Two Machines in One
Many 1612 models include a roll-to-roll attachment – converting the printer from flatbed to roll-fed in minutes.
Mode Media Type Applications
Flatbed Rigid sheets up to 100mm thick Acrylic, wood, metal, glass, PVC
Roll-to-roll Flexible media on rolls Vinyl stickers, banner, mesh, fabric, PET film
This means you can:
· Print rigid signage in the morning
· Switch to roll-to-roll for vinyl stickers in the afternoon
· No second machine required
- Industrial Build Quality at Mid-Range Price
The 1612 occupies a sweet spot in pricing:
Printer Size Typical Price Range Best For
Desktop A3 (small) $3,000 – $8,000 Hobby, gifts, small volume
1612 (medium) $12,000 – $25,000 Commercial, daily production
1621 / 2030 (large) $30,000 – $80,000+ High-volume, large format
The 1612 gives you industrial features (vacuum table, heavy-duty frame, recirculating white ink) at a price that pays for itself quickly.
Who Is Buying the 1612 UV Printer Right Now?
Customer Type Why They Buy
Sign shops Print acrylic signs, PVC banners, aluminum composite panels
Furniture decorators Direct print on cabinet doors, table tops, chair backs
Acrylic fabricators Light boxes, POS displays, acrylic awards
Packaging companies Short-run rigid boxes, displays, prototypes
Industrial part markers Serial numbers, logos, control panels
Tile decorators Custom ceramic tiles, backsplashes
Glass printers Decorative glass panels, mirrors, shower doors
Wood decorators Cutting boards, gifts, furniture, signage
Promotional product decorators Larger items (coolers, toolboxes, equipment)
Print-for-hire shops “Print on anything” service
1612 vs Competitor Sizes: Quick Comparison
Feature A2/A3 Desktop 1612 1621 (3.2m length)
Print area 0.2 – 0.5 sq m 1.92 sq m 5.12 sq m
Max sheet size Small gifts 4′ x 4′ panels 4′ x 10′ sheets
Max height 80–100mm 100–200mm 50–100mm
Price range $3k–8k $12k–25k $30k–60k+
Footprint Desk Small workshop Warehouse
Best for Gifts, samples Daily commercial High-volume signage
The 1612 is the step up from desktop and the smart buy before jumping to warehouse-sized machines.
Common Concerns – Addressed
“Is 1.6m x 1.2m big enough?”
For 80-90% of commercial UV printing, yes. Full 4′ x 8′ sheets (2440x1220mm) won’t fit, but many sign shops cut large sheets down. If you constantly print larger, buy a 1621 or 2030.
“Can I print on thick objects?”
Most 1612 models handle 100–200mm (4–8 inches) of height. This covers furniture panels, boxes, assembled products, and most industrial parts.
“Does white ink clog?”
Quality 1612 printers include automatic white ink circulation (stirring system) that prevents sedimentation. Without circulation, white ink clogs in hours. Never buy a UV printer without white ink circulation.
“What about roll-to-roll?”
Many 1612 models offer an optional roll-to-roll kit. If you print on vinyl, banner, mesh, or fabric, buy this option. It pays for itself quickly.
“Is training included?”
Reputable suppliers offer 3–7 days of on-site or remote training. Do not buy from a supplier who does not provide training – UV printers require proper setup and maintenance.
Key Features to Look For (When Buying a 1612)
✅ Epson I3200 or XP600 printheads – reliable, parts available globally
✅ White ink circulation system (automatic, continuous stirring)
✅ Vacuum table with zones – holds materials flat
✅ Automatic height sensor – prevents head crashes
✅ UV-LED lamps (energy efficient, 50,000+ hours)
✅ CMYK + White + Varnish (minimum 4 color + white)
✅ Roll-to-roll option – ask if it’s included or extra
✅ RIP software included (Maintop, Photoprint, Caldera, Onyx)
✅ CE, FCC, RoHS certified – required for import to most countries
✅ 2-year warranty + global parts availability
Sample Business Models with the 1612
Model 1: Full-Service Sign Shop
· Print acrylic signs (window displays, real estate)
· Print PVC foam boards (event signage, trade shows)
· Print Dibond (outdoor durable signs)
· Add roll-to-roll for vinyl stickers and banners
Model 2: Furniture Decoration
· Partner with cabinet makers
· Print directly on cabinet doors, table tops, chair backs
· Offer full-color, photographic finishes
· No laminating, no edge banding of prints
Model 3: Acrylic Light Box Manufacturer
· Print reverse on clear acrylic (second surface)
· Add white underbase for opacity
· Backlight with LEDs
· Sell to restaurants, retail stores, hotels
Model 4: Industrial Part Marking
· Print serial numbers, logos, instructions directly on parts
· No labels that peel off
· Chemical and scratch resistant
· Serve automotive, electronics, appliance industries
Model 5: On-Demand Decor
· Print custom tiles for kitchen backsplashes
· Print wood panels for accent walls
· Print glass for shower enclosures
· Minimum order = 1 piece
The Bottom Line: Is the 1612 Right for You?
Choose the 1612 if:
· You print on rigid materials (acrylic, wood, metal, glass, PVC, tile)
· Your typical sheet size is up to 1.6m x 1.2m (4′ x 4′)
· You want to offer both flatbed and roll-to-roll (hybrid)
· You are a sign shop, furniture decorator, or industrial printer
· Your budget is $12,000–25,000
· You want a machine that fits in a workshop, not a warehouse
Don’t choose the 1612 if:
· You only print small gifts (buy desktop A3/A2)
· You constantly print 4′ x 8′ sheets (buy 1621 or 2030)
· You only print roll media (buy a dedicated roll-to-roll)
· Your budget is under $10,000 (start with desktop)
