2513 UV Flatbed Printer: The Smart Choice for Growing Print Businesses Worldwide

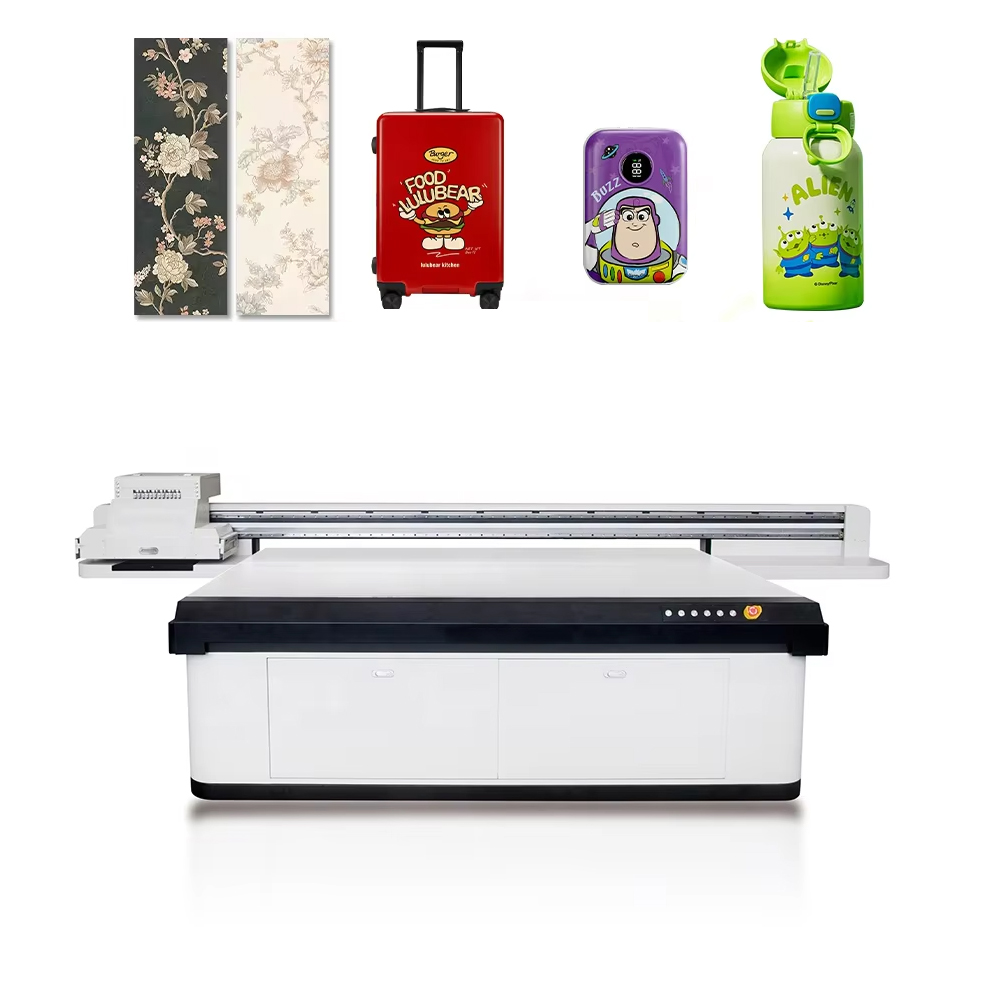

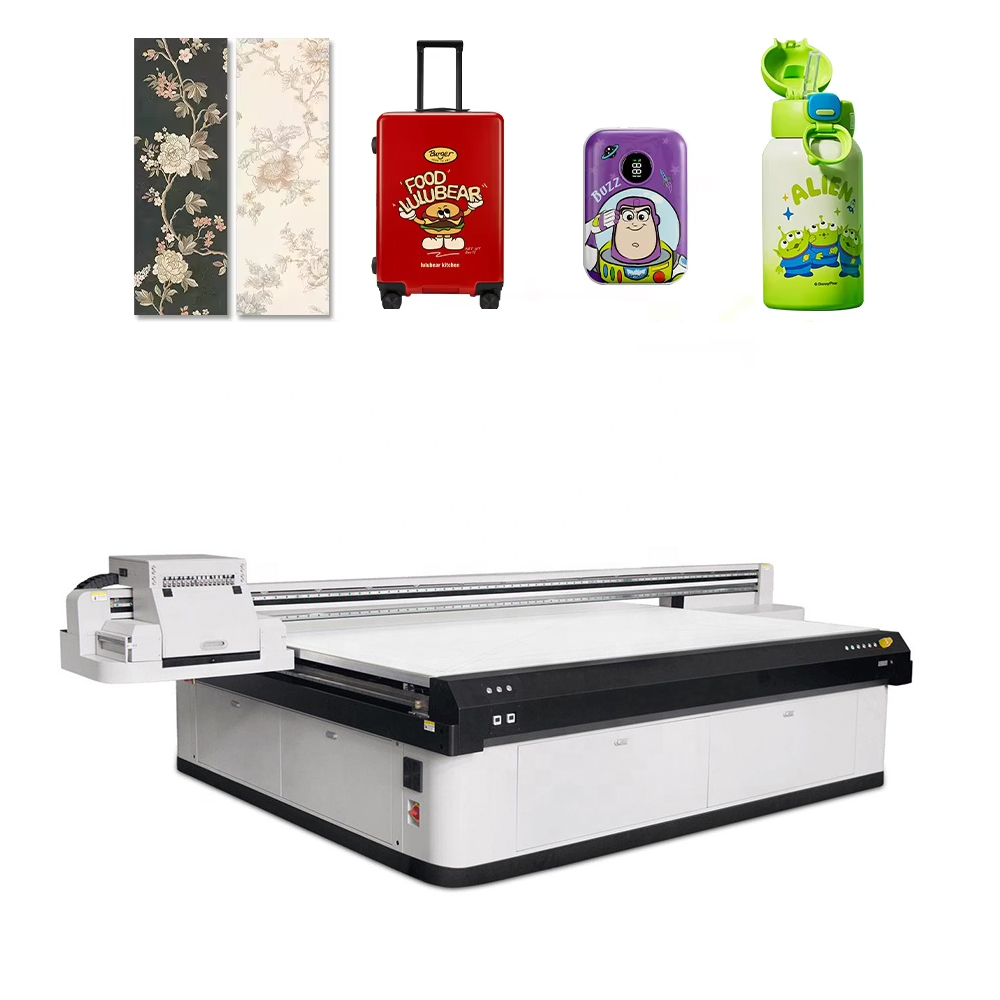

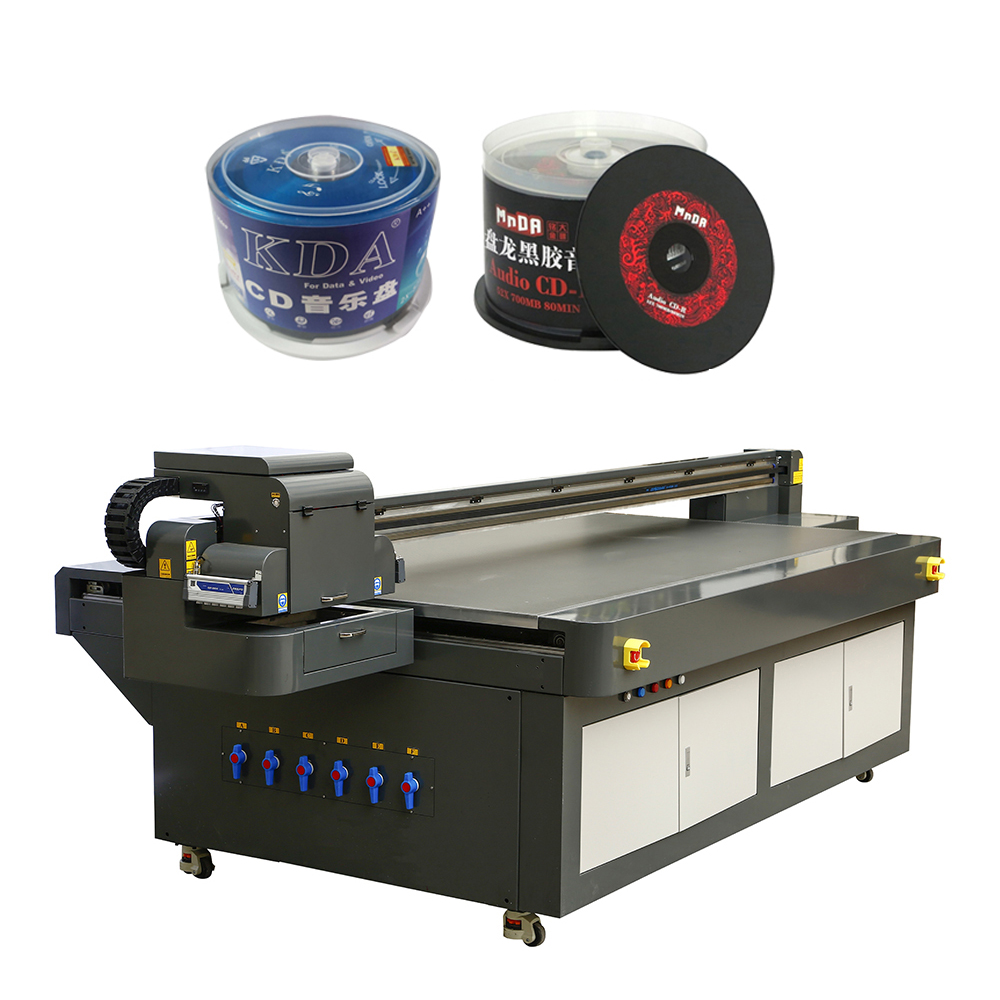

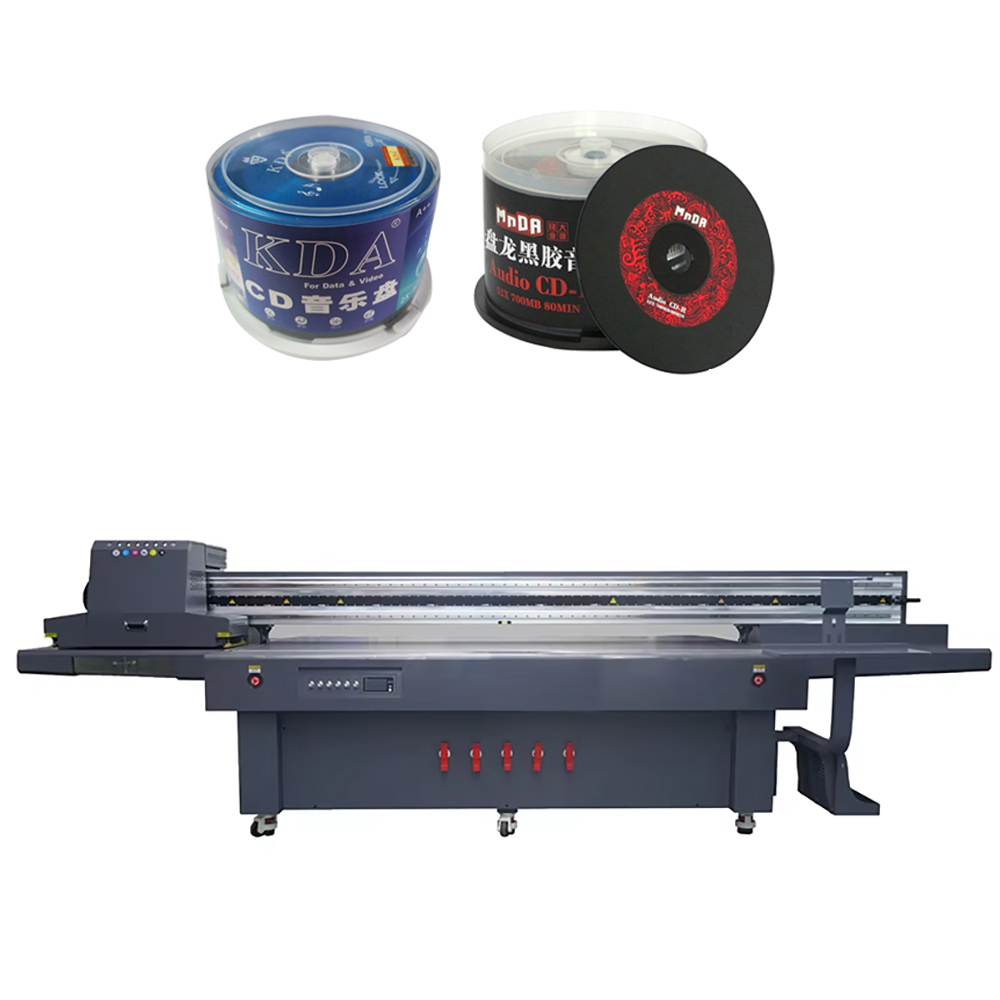

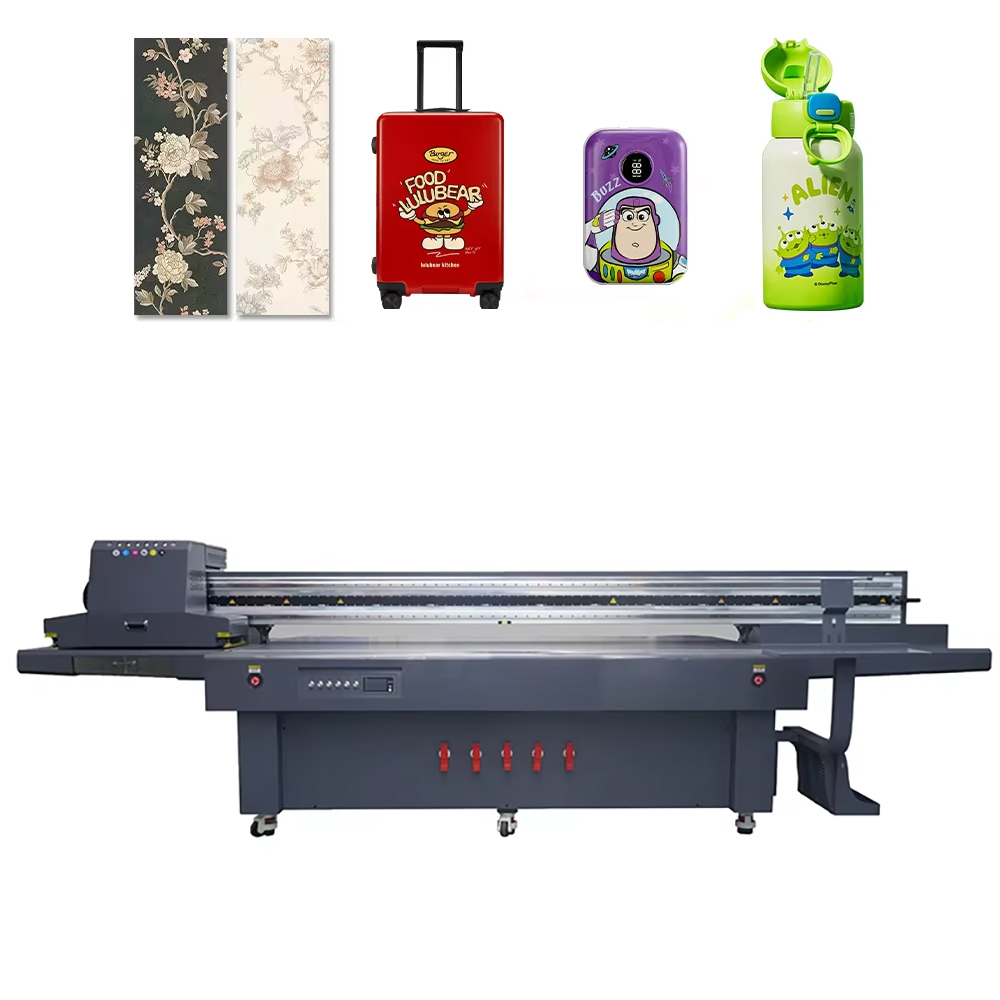

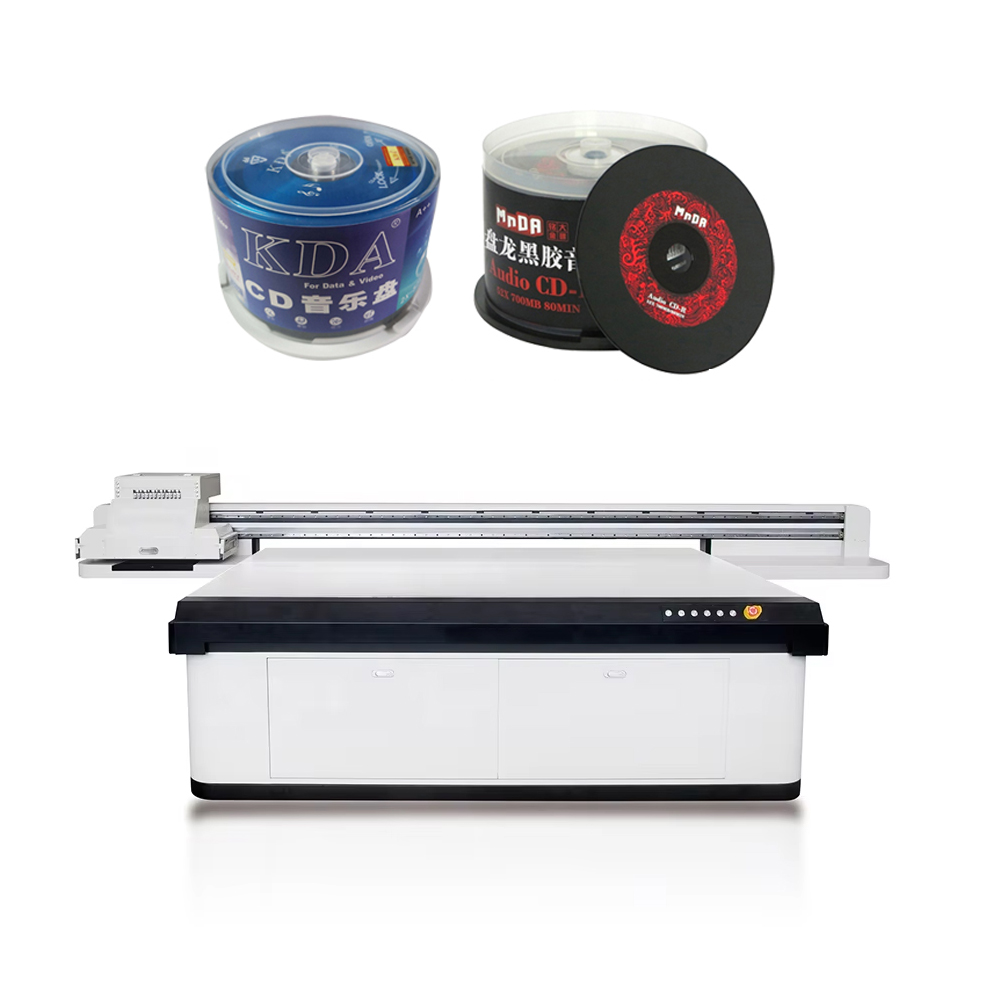

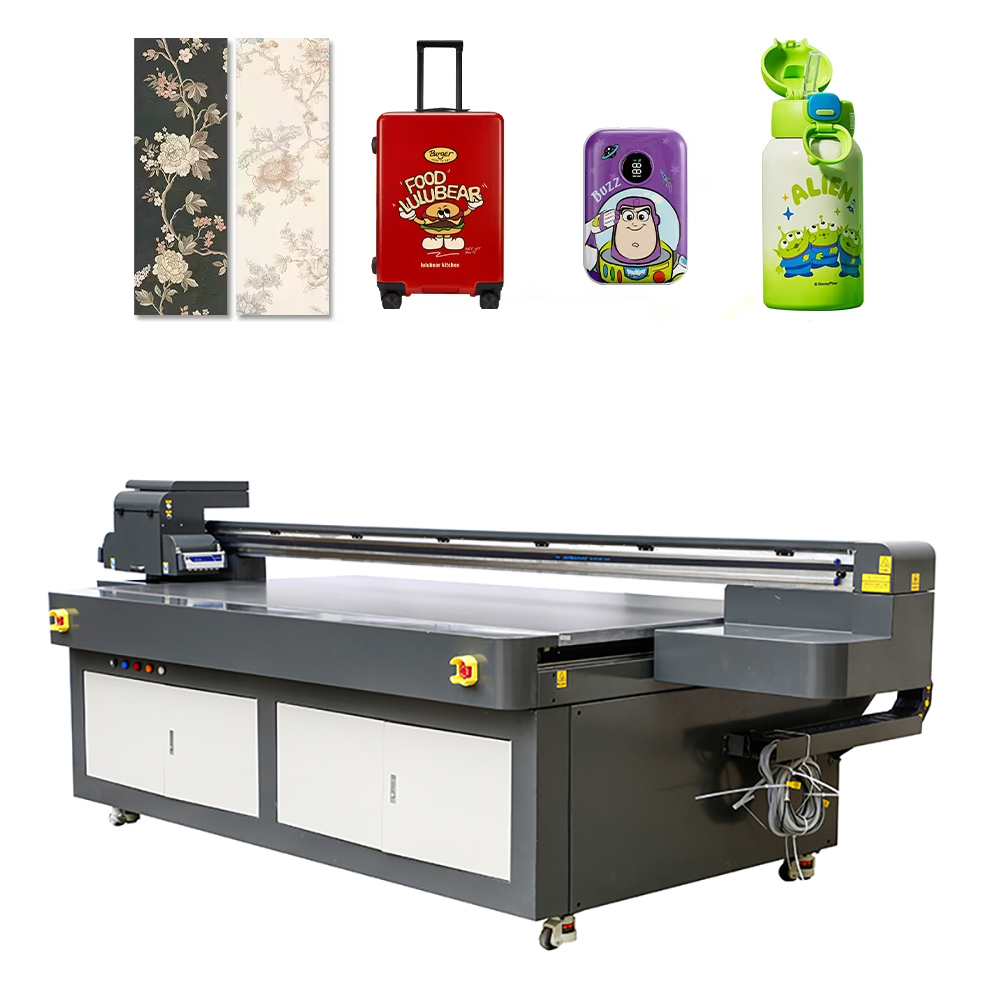

What Is the 2513 UV Printer?

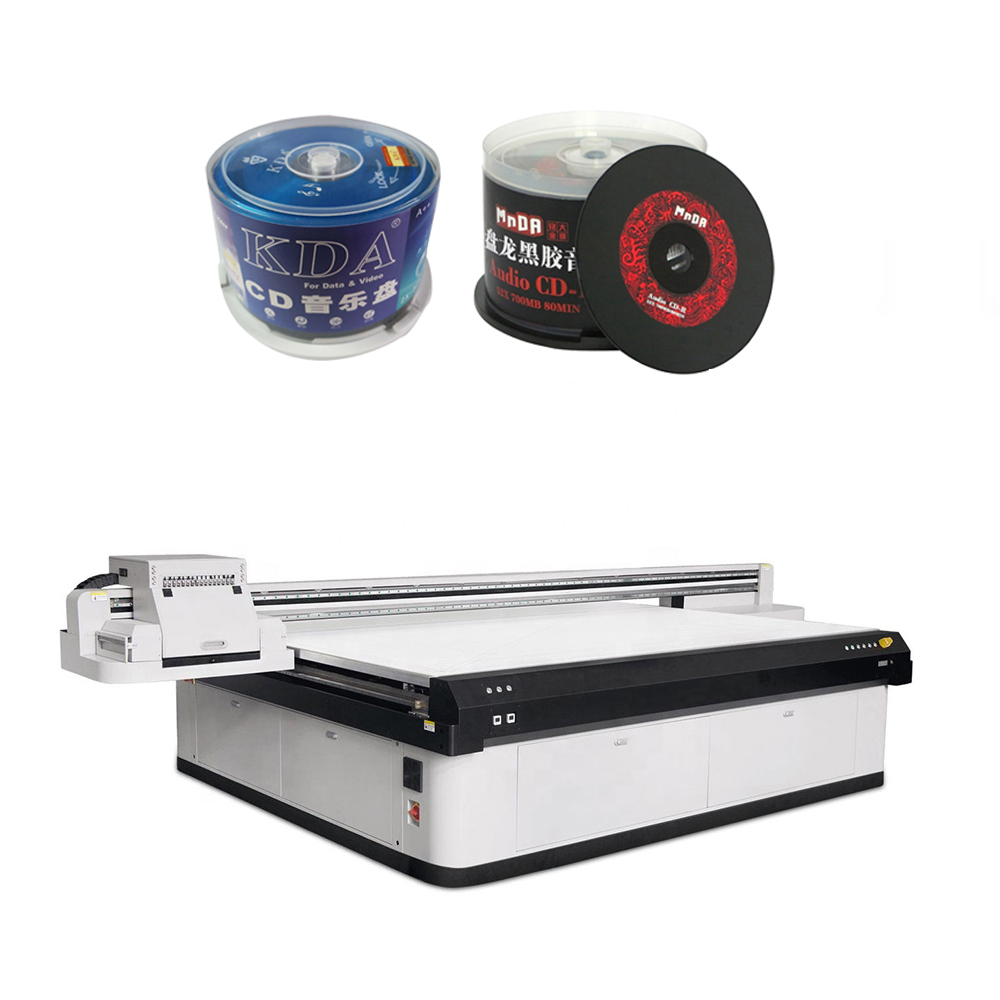

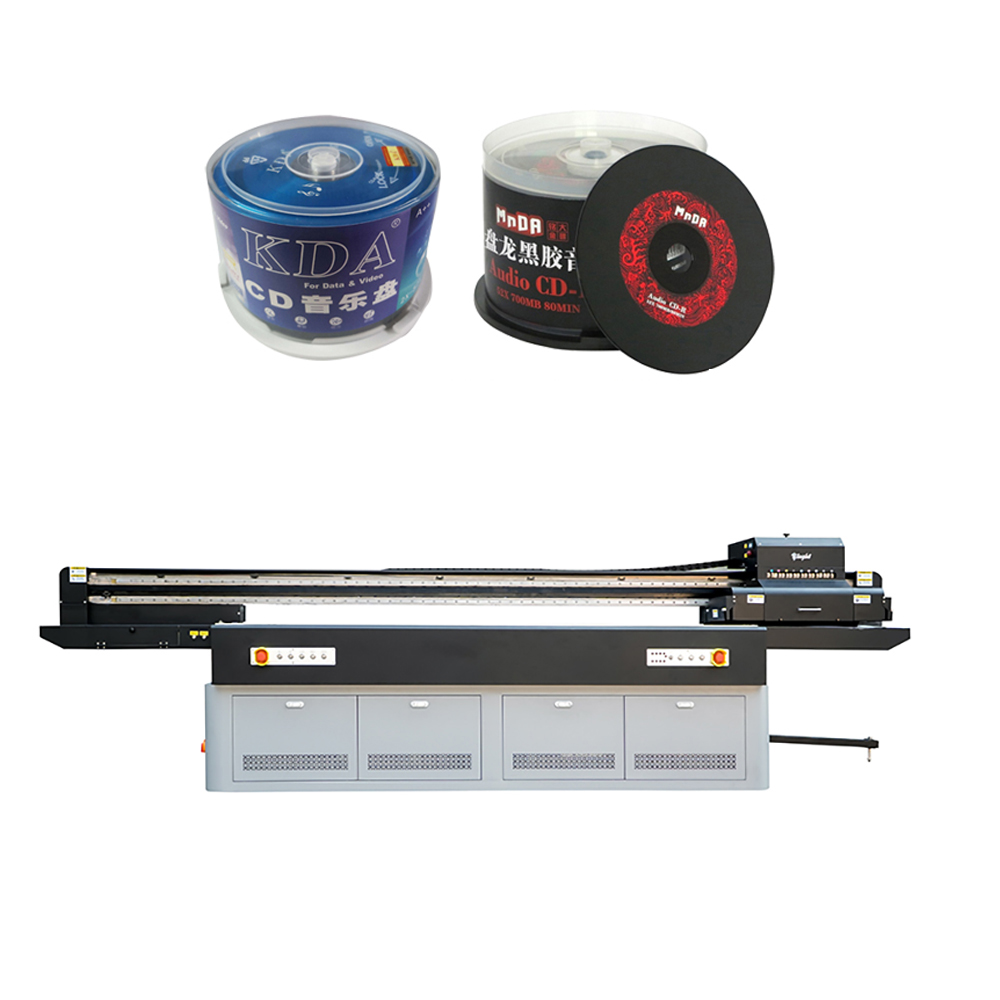

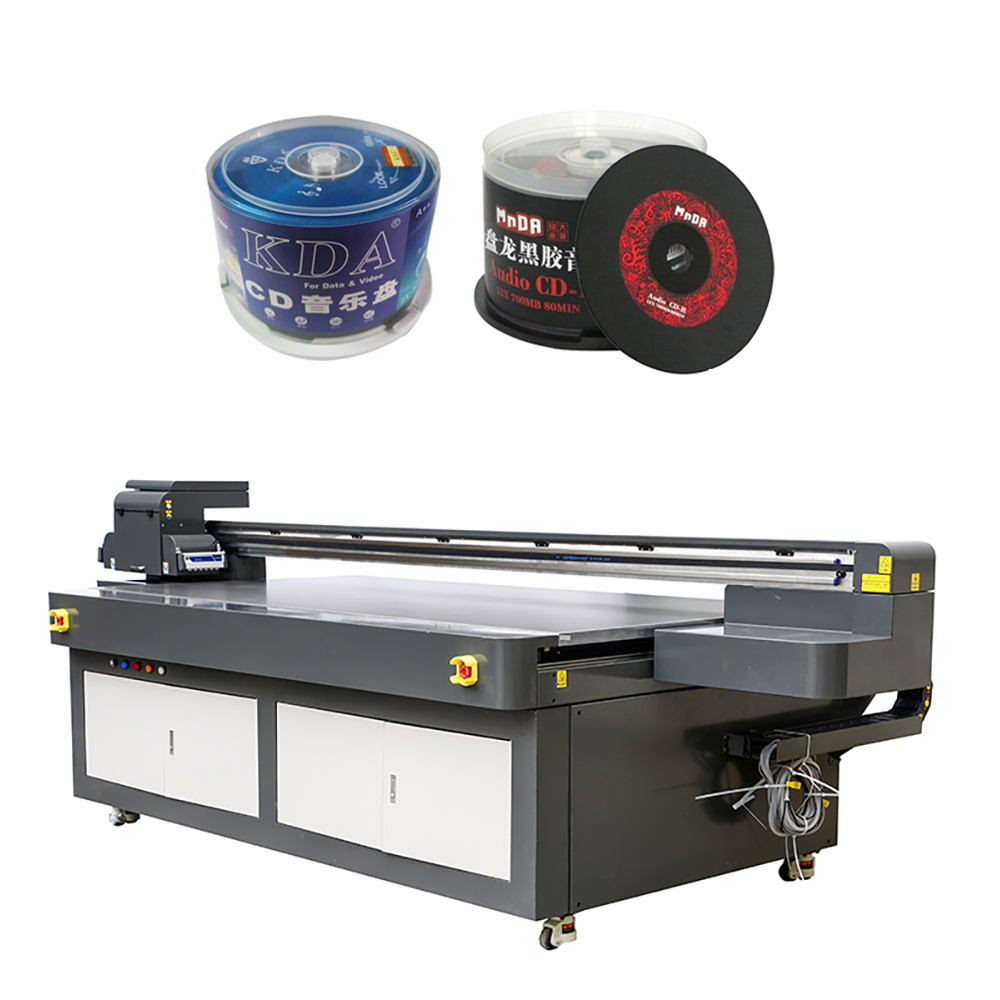

The 2513 is a flatbed UV printer with a 2.5m x 1.3m (98″ x 51″) print area. Unlike roll-to-roll printers that only handle flexible materials, the 2513 prints directly onto rigid substrates up to 100mm thick.
The UV ink cures instantly under LED lamps. No drying time. No smudging. No secondary equipment.
It occupies the sweet spot between small desktop UV printers (too limited) and massive industrial 3220 models (too expensive and large). For most sign shops, furniture makers, and promotional product businesses, the 2513 is the perfect fit.
Why Global Businesses Choose the 2513
- Perfect for Standard 4×8 ft Sheets
The 2513 print area is designed for real-world materials. Standard plywood, acrylic, aluminum composite, and foam boards (2440 x 1220mm) fit with room to spare. No wasted space. No awkward overhangs.
- Print on Almost Any Material
Wood, glass, metal, acrylic, leather, stone, ceramic tiles, plastic, canvas—the 2513 handles them all. One machine replaces multiple printers and opens new revenue streams.
- Zero Setup. Zero Minimums.
Screen printing requires screens and hours of setup. The 2513? Load your file. Press print. Print one piece or one thousand. Same low cost per unit. Short-run and personalized jobs become profitable.
- Instant Curing, Fast Turnaround
UV ink cures the moment the LED lamp hits it. Stack finished pieces immediately. Ship same day. No waiting. No powder. No smudging.
- Fits Real Workshops
Footprint: ~3.8m x 2.5m. Power: standard 220V, 20-30A. No warehouse required. No building modifications. Fits in a garage, small bay, or dedicated room.
- White Ink and Varnish for Premium Finishes
Print opaque white on dark or clear substrates (glass, acrylic). Add spot gloss or matte varnish for high-end effects. Premium finishes command premium prices.
Who Is the 2510 For?
Industry Applications
Sign shops Acrylic signs, ACP displays, foam board, trade show booths
Furniture makers Custom cabinet doors, table tops, decorative panels
Glass fabricators Shower doors, partitions, back-painted glass
Promotional products Phone cases, coasters, keychains (batch print hundreds at once)
Industrial marking Control panels, nameplates, serial number labels
Technical Specifications
Feature Detail
Print area 2500 x 1300mm (98″ x 51″)
Material thickness Up to 100mm (200mm optional)
Printheads Ricoh Gen5/Gen6, Kyocera, or Konica (2-6 heads)
Ink colors CMYK, White, Varnish
Resolution Up to 2400 dpi
Speed 10-50+ sqm/hour (depending on head config)
Curing Dual UV LED lamps (water-cooled)
Power 220V ±10%, 20-30A, 50/60Hz
Machine weight 800-1200 kg
Footprint ~3800 x 2500 x 1350mm
Typical Speed (4-head Ricoh Gen5):
Mode Speed (sqm/hr) 4×8 ft sheets/hr
Draft 40-50 10-12
Production 20-30 5-7
Quality 12-18 3-4
Key Features That Matter
Vacuum table with multiple zones – Activate only the zones under your material. Holds small pieces securely.
Automatic head height detection – Measures distance to substrate and adjusts automatically. No crashes on thick or uneven materials.
White ink recirculation – Prevents settling and clogging. White ink stays ready to print.

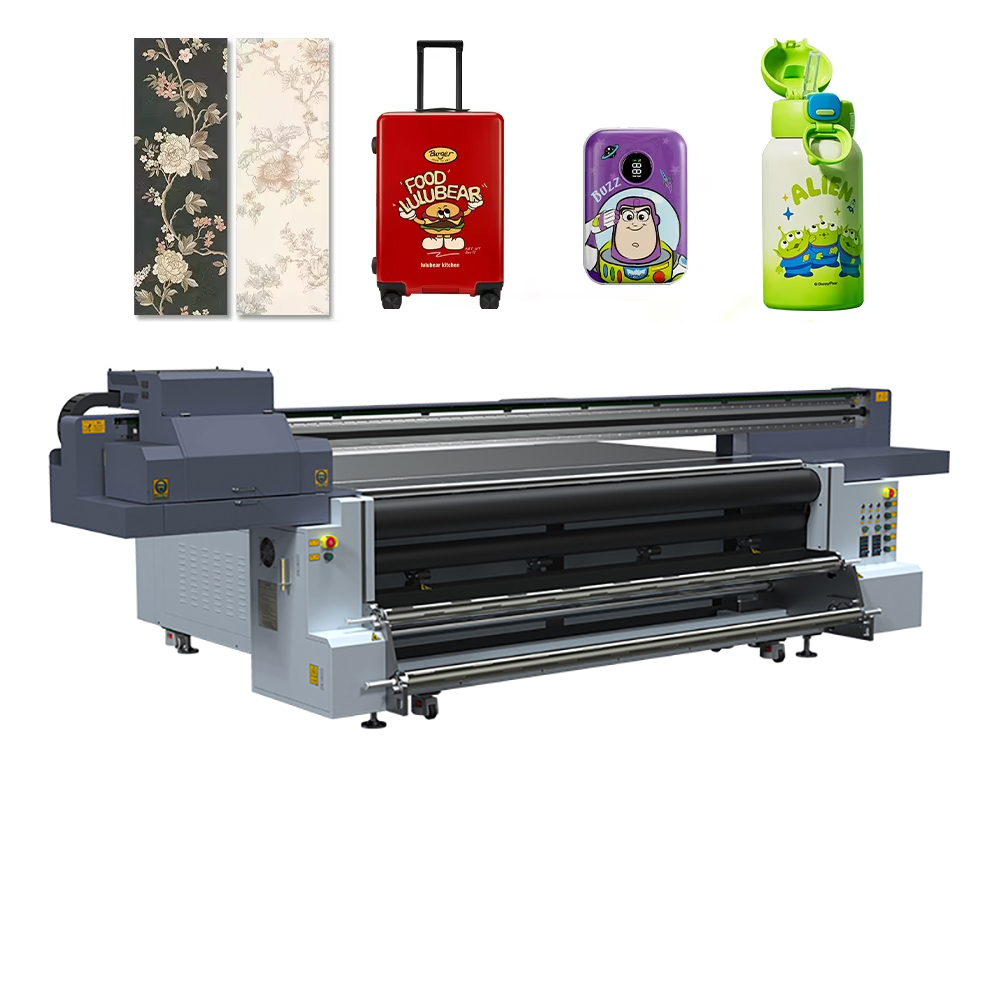

Optional roll-to-roll kit – Convert to flexible media printing (vinyl, banner, mesh).
Optional rotary attachment – Print on mugs, bottles, cups, and other cylindrical objects.
Real Results from Global Users
“We outsourced all our acrylic and aluminum signage before. Lead time was 2-3 weeks. With the 2513, we print in-house and deliver in 2 days. Rigid signage revenue tripled in one year.”
— Sign shop owner, Australia
“Batch printing phone cases and coasters changed our business. We print 200+ small items per hour. The machine paid for itself in 7 months.”
— Promo products manufacturer, China
“The white ink opacity on glass is excellent. We printed a 2.4m shower door with a marble pattern. The client thought it was real stone.”
— Glass fabricator, Florida, USA
Common Questions
Q: What materials can I print on?
A: Wood, glass, metal, acrylic, leather, stone, ceramic, plastic, canvas, foam board, aluminum composite, and more.
Q: Does the ink scratch off glass or metal?
A: No. UV ink bonds directly to properly prepared surfaces. It is scratch-resistant and waterproof.
Q: How long does the ink last outdoors?
A: 3-5+ years without significant fading, depending on climate and UV exposure.
Q: Do I need special ventilation?
A: No. Unlike solvent printers, UV LED printers produce minimal VOCs. Standard shop ventilation is fine.
Q: What is the typical ROI?
A: Most buyers achieve payback in 6-12 months. A single large signage job per month can cover the machine payment.
Q: Do you ship worldwide?
A: Yes. We have distribution centers in North America, Europe, and Asia. Spare parts and ink ship globally within 3-7 business days.
