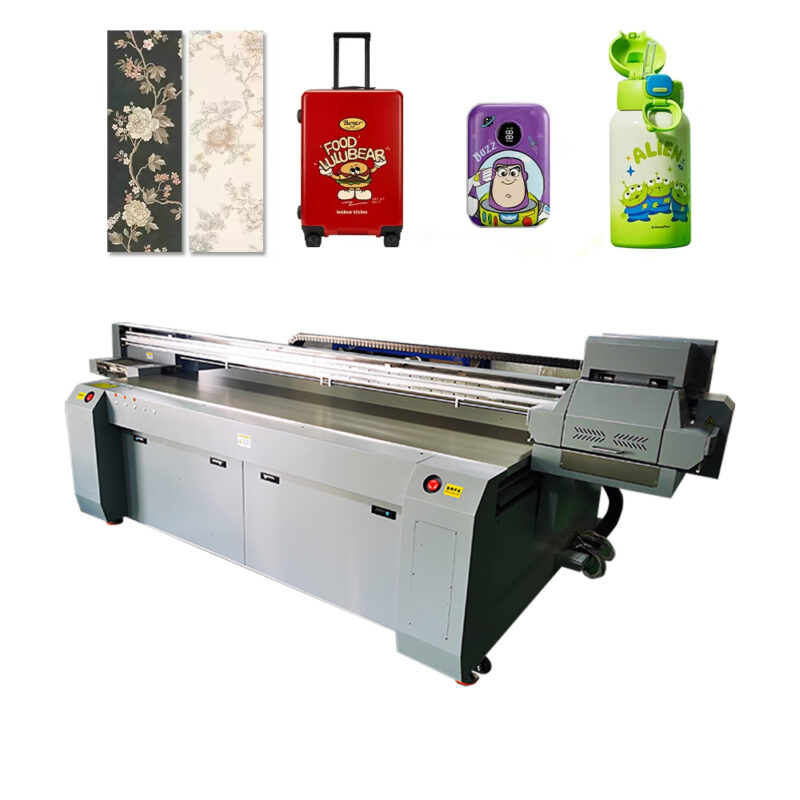

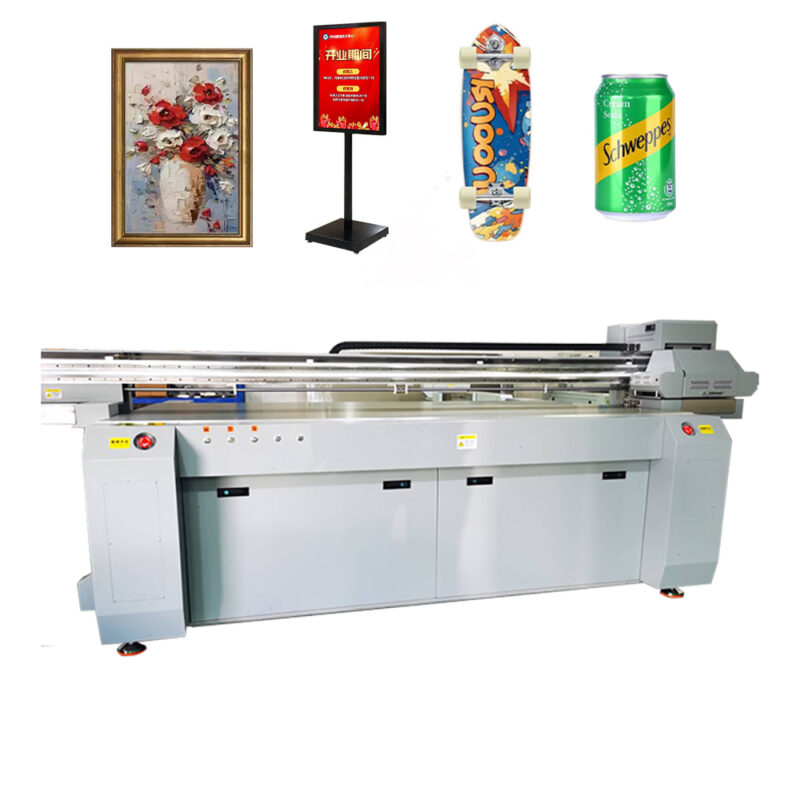

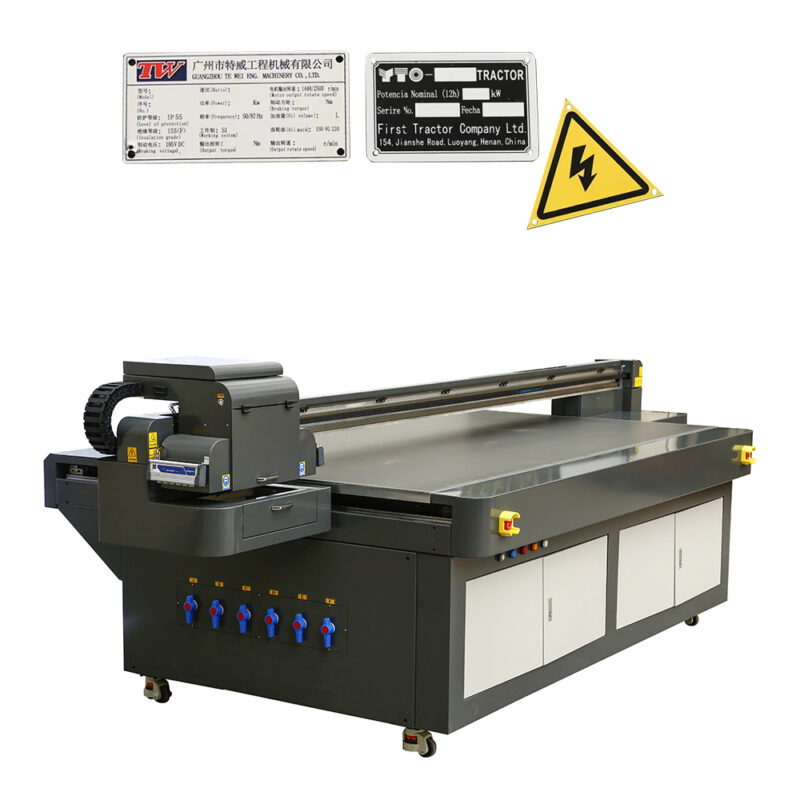

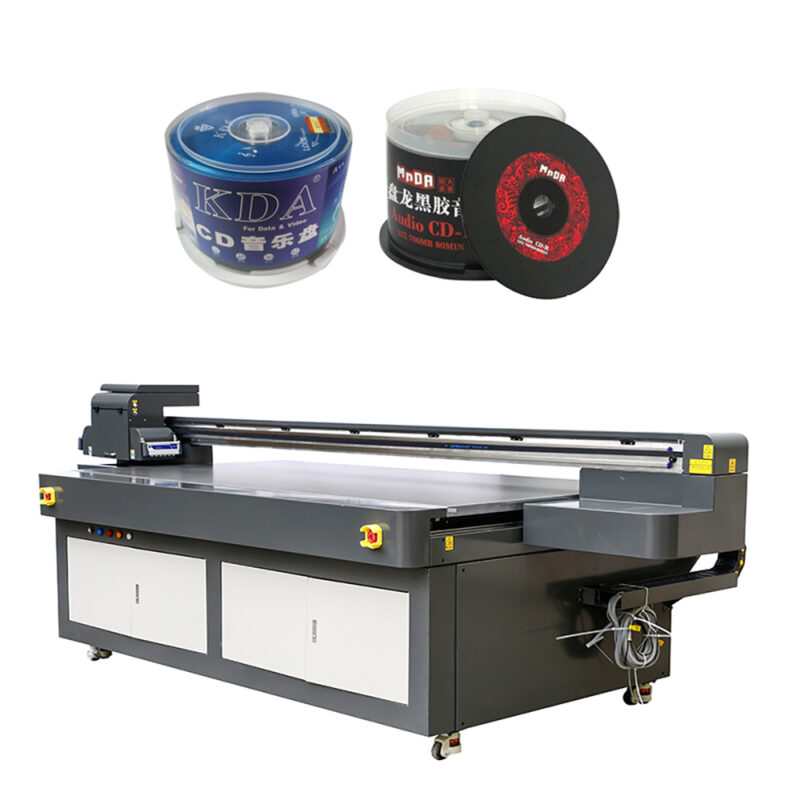

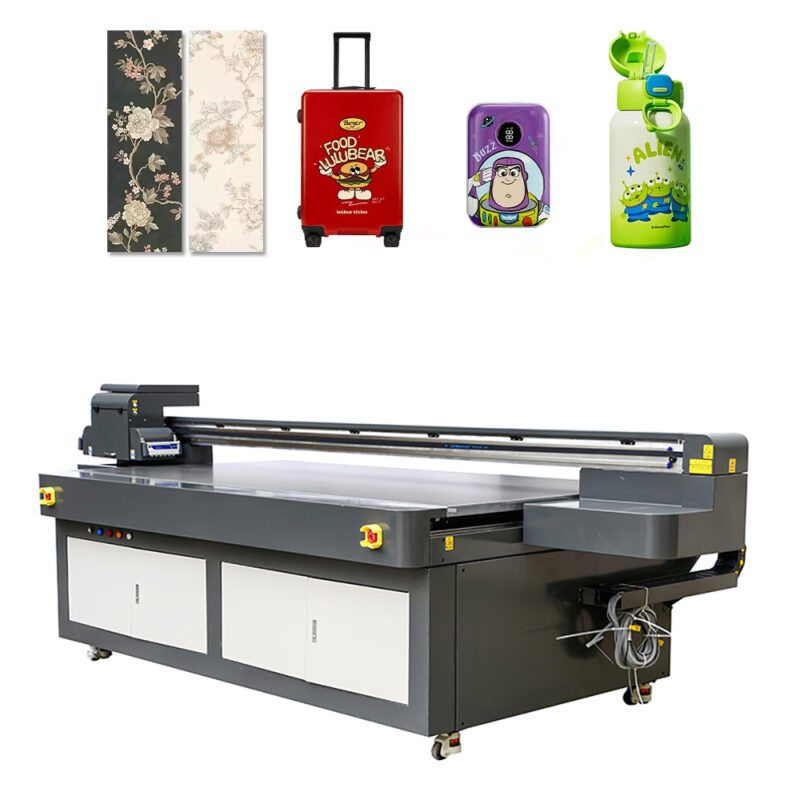

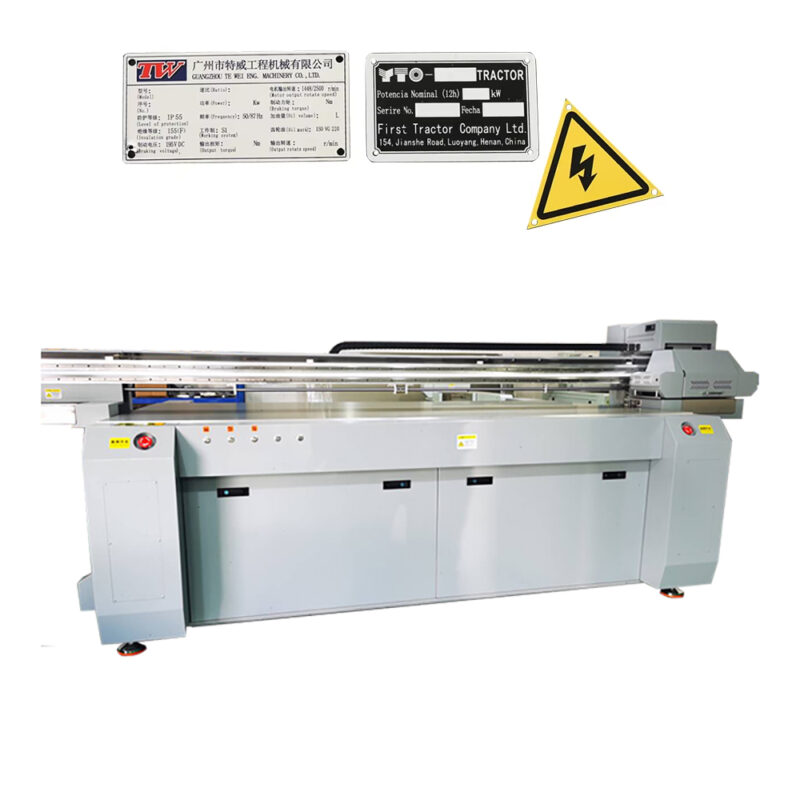

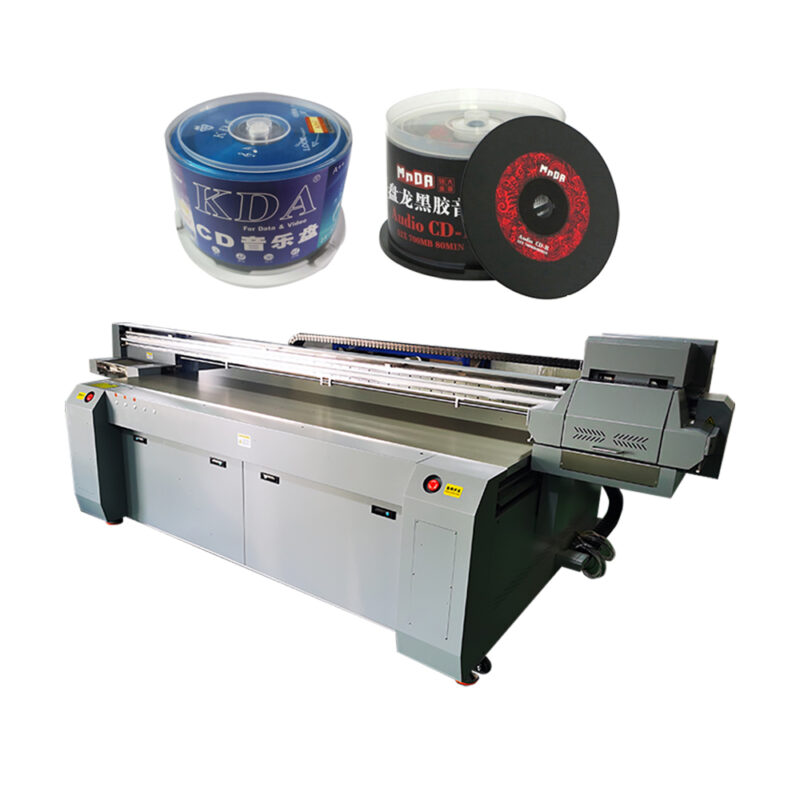

The 2513 UV Flatbed Printer: Your 4’×8′ Gateway to Unlimited Substrate Printing
Subtitle: 2.5m × 1.3m of pure production power — print on wood, glass, metal, acrylic, stone, and more with precision, speed, and LED curing.
The numbers tell the story: 2500mm × 1300mm (8.2 feet × 4.3 feet). That’s the magic of the 2513 UV flatbed printer — engineered specifically to handle the global standard 4’×8′ sheet goods that drive the signage, furniture, and construction industries worldwide .
Whether you run a print shop in London, a furniture factory in Vietnam, or a glass decoration business in Dubai, the 2513 platform delivers the perfect intersection of large-format capability, material versatility, and rapid return on investment.
What Is a 2513 UV Flatbed Printer?
The “2513” designation refers to the printer’s maximum print dimensions: 2500mm × 1300mm (98.4 inches × 51.2 inches) . This UV flatbed printer uses ultraviolet light to instantly cure inks as they are deposited — no drying time, no heat damage, and the ability to print on virtually any flat surface.
Unlike roll-to-roll printers limited to flexible materials, a flatbed printer holds rigid materials stationary on a vacuum table while the printhead moves across them .
Core Specifications
Specification Typical Range Benefit
Print Area 2500 × 1300 mm (8.2′ × 4.3′) Fits standard 4’×8′ sheets with margin
Media Thickness Up to 100-400 mm Print on thick objects, even with relief
Resolution Up to 1440-2880 dpi Sharp, detailed prints on any surface
Printheads Ricoh GEN5/GEN6, Konica Configurable for speed or precision
Ink Colors CMYK + White + Varnish + Optional LcLm Unlimited color possibilities
Curing LED UV (low heat, instant) Energy-efficient, safe for heat-sensitive materials
Weight 950-1,600 kg Solid, vibration-free construction
Why Global Customers Are Choosing the 2513 UV Platform
- The Perfect 4’×8′ Sheet Format
The 2513’s 2500mm × 1300mm bed was engineered for the world’s most common industrial sheet size: 4 feet by 8 feet .
· Full 4’×8′ plywood, MDF, or acrylic sheets — no cutting required before printing
· Standard glass panels for partitions and shower doors
· Multiple smaller pieces nested simultaneously for batch production
· Print height up to 100-400mm — accommodating thicker materials
- One Machine, Virtually Every Substrate
The 2513 UV printer prints directly onto an extraordinary range of rigid materials, offering multi-material printing mastery that traditional printers cannot match :
· Wood & Composites: Plywood, MDF, particle board, solid wood
· Glass & Mirror: Tempered, frosted, laminated
· Stone & Tile: Marble, granite, slate, ceramic
· Metal & Aluminum: Composite panels (Dibond), sheet metal
· Acrylic & Plastics: Plexiglass, PVC, polycarbonate, ABS
· Foam Board & Sintra: Lightweight signage materials
· Textiles & Leather: Direct onto fabric, leather hides
The business impact: You stop being a “sign shop” and become a universal print provider — capable of handling any rigid substrate a client brings through the door .
- LED UV Curing — Instant, Cool, Eco-Friendly
Modern 2513 UV printers feature LED UV curing technology that delivers game-changing advantages :
· Instant drying: Prints exit 100% dry and ready for immediate handling
· No heat damage: Low-temperature curing protects heat-sensitive materials from warping
· Energy efficiency: LED systems consume significantly less electricity than conventional UV lamps
· Eco-friendly: UV inks contain no VOCs; LED curing produces no ozone emissions, meeting EU RoHS standards
· Long lifespan: LED lamps last over 10,000 hours — no expensive bulb replacements
- White Ink + Varnish — Premium Finishes
Top-tier 2513 configurations include white ink and clear varnish alongside standard CMYK :
Application How White Ink Helps How Varnish Helps
Glass printing White underbase makes colors pop on transparent surfaces High-gloss or matte selective coating
Dark substrates Prints bright images without needing white materials Scratch protection
Backlit signage White layer creates diffusion for even illumination Anti-fingerprint finish
Home décor Enables vibrant designs on dark MDF or wood panels Texture effects and durability
With 6-8 color channels and white ink circulation systems that prevent sedimentation, your 2513 becomes a fine art production machine, not just an industrial printer .
- Industrial-Grade Engineering — Built to Last
Leading 2513 models incorporate heavy-duty construction for reliability under continuous operation :
· Magnetic levitation drive system boosts speed up to 75 m²/h — 60% more efficient than traditional models
· Automatic height detection with ±0.1mm precision for varying material thicknesses
· Negative pressure ink supply + white ink recirculation for stable output
· Water-cooled LED lamp system for reliable curing
· Anti-crash system protects printheads during operation
· User-friendly control panel with digital display for easy job programming
With proper maintenance, a 2513 UV printer can deliver 5 to 10 years of service life .
- Scalable Speed — From Entry to Production
2513 UV printers offer speed configurations for every production level :
Configuration Speed Range Best For
Entry-level (2-4 heads) 6-15 m²/hour Prototyping, small shops, low volume
Mid-range (6-8 heads) 15-48 m²/hour Growing print-for-pay businesses
Industrial (10-16 heads) 48-90+ m²/hour High-volume production, 24/7 operations
- Certified Excellence
Leading 2513 models carry CE certification and comply with RoHS standards, ensuring safety and environmental compliance for global markets . Multilingual software support (Photoprint, ONYX, Colorgate, MainTop) enables smooth operation worldwide .
Who Is Buying 2513 UV Printers Worldwide?
Industry Applications Why 2513
Signage & Display Billboards, retail POP, trade show booths Perfect 4’×8′ format, rigid substrates
Furniture Manufacturing Custom cabinet doors, table tops, headboards Direct printing on MDF, plywood, solid wood
Architectural Glass Decorative partitions, shower doors, branded glass White ink for opacity; UV durability
Stone & Tile Fabrication Backsplashes, flooring, monuments Direct printing on marble, granite, slate
Interior Decoration Wall panels, ceiling tiles, flooring Eliminates laminates and vinyls
Promotional Products Custom phone cases, coasters, signage kits Small items nested on large bed
Packaging Short-run boxes, prototypes, seasonal packaging No tooling costs, variable data capable
The ROI: How Fast Do You Recover Your Investment?
Equipment Investment (USD)
· Entry-level 2513 (2-4 heads): $15,000 – $25,000
· Mid-range 2513 (6-8 heads): $25,000 – $50,000
· Industrial 2513 (10+ heads): $60,000 – $150,000+
Per-Sheet Economics (Printing on 4’×8′ panel)
Cost Component Amount
Ink cost per m² $3 – $6
Total cost per 4’×8′ sheet (~3 m²) $9 – $18
Market price (custom printed panel) $80 – $250
Gross margin per sheet 85-90%
Break-Even Analysis (Mid-range $40k machine)
· Print 15 sheets per day at $100 profit each = $1,500/day gross profit
· Payback period: 4-8 weeks
A 2513 user in the interior decoration industry replaced traditional methods with UV printing, cutting both cost and time while enabling personalized customization for clients . Another furniture manufacturer reported printing a tile background wall in 3 hours — a job that previously took 3 days using traditional methods .
2513 UV vs. Alternatives: Why It Wins
Feature 2513 UV Flatbed Small Flatbed (A2/A3) Roll-to-Roll Solvent Screen Printing
Max print size 2.5m × 1.3m 0.4m × 0.6m Unlimited length Unlimited
4’×8′ sheets ✅ Single pass ❌ Multiple tiles ❌ No ✅ Yes
Rigid materials ✅ Direct ✅ Direct (small) ❌ No ✅ Yes (setup heavy)
Setup time Minutes Minutes Minutes Hours (screens)
Variable data ✅ Yes ✅ Yes ✅ Yes ❌ No
Minimum order 1 piece 1 piece 1 roll 50+ pieces
The verdict: The 2513 UV printer doesn’t replace roll-to-roll for banners or screen printing for massive uniform runs. But for rigid, large-format, short-to-medium run customization — it has no equal.
What to Look for When Buying a 2513 UV Printer (Global Buyer’s Guide)
✅ Printhead Technology
· Ricoh GEN5 / GEN6 – Industry standard, excellent for white ink, durable
· Multiple head configs – 2-16 heads for scalability
✅ Vacuum Bed Quality
· Look for zoned vacuum sections for secure material hold-down
· Ensure the table is precision-ground flat for consistent print quality
✅ Ink Configuration
· Minimum: CMYK + White
· Recommended: CMYK + White + Varnish
· Premium: CMYKLcLm + White + Varnish
✅ Maximum Material Thickness
· Standard: 100mm (4 inches)
· Upgraded: 150-400mm for thicker objects
✅ Certifications
· CE – European safety standard
· RoHS – Restriction of hazardous substances
✅ Support & Training
· Does the manufacturer offer on-site installation and training?
· Is there a local service network or 24/7 remote support?
· Are spare parts (printheads, LED lamps) readily available?
· What is the warranty period? (Typically 1-2 years)
✅ Pre-purchase Checklist
· ✅ Get sample prints on YOUR materials (wood, glass, acrylic, metal) before buying
· ✅ Ask for a live or video demo showing speed and quality
· ✅ Verify ink adhesion with a scratch test
· ✅ Request references from customers in your industry
Ready to Transform Your Production Capabilities?
The 2513 UV flatbed printer is not just a machine — it’s a business expansion tool. It allows you to:
· Say “yes” to jobs you previously outsourced or rejected
· Capture margin you previously gave away to competitors
· Print on materials you never thought possible — glass, wood, metal, stone
· Deliver 4’×8′ sheets in minutes, not days
· Offer white ink and varnish finishes that command premium prices
Stop turning away large-format rigid substrate jobs. Start printing your future.
Get Your 2513 UV Printer Today
🌍 We supply 2513 UV flatbed printers for every budget and volume — from entry-level 4-head systems to industrial 16-head production lines. All models feature global voltage compatibility (110V/220V), multilingual software, CE certification, and worldwide shipping.
📞 Contact our global sales team for a personalized quote, material sample testing, and a live online demonstration. Ask about our financing options and extended warranty packages.
