1600mm × 1200mm of unlimited creative potential — print on metal, glass, wood, acrylic, leather, and more with precision, speed, and LED curing.

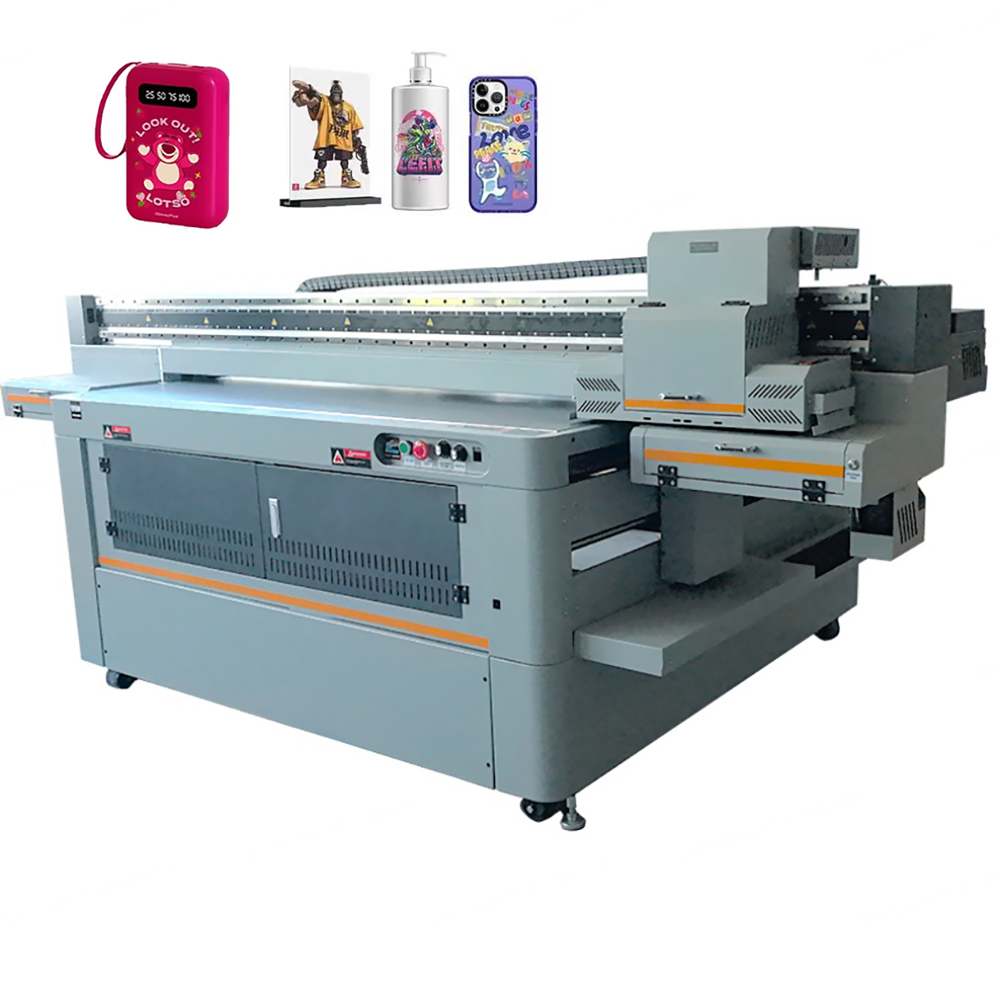

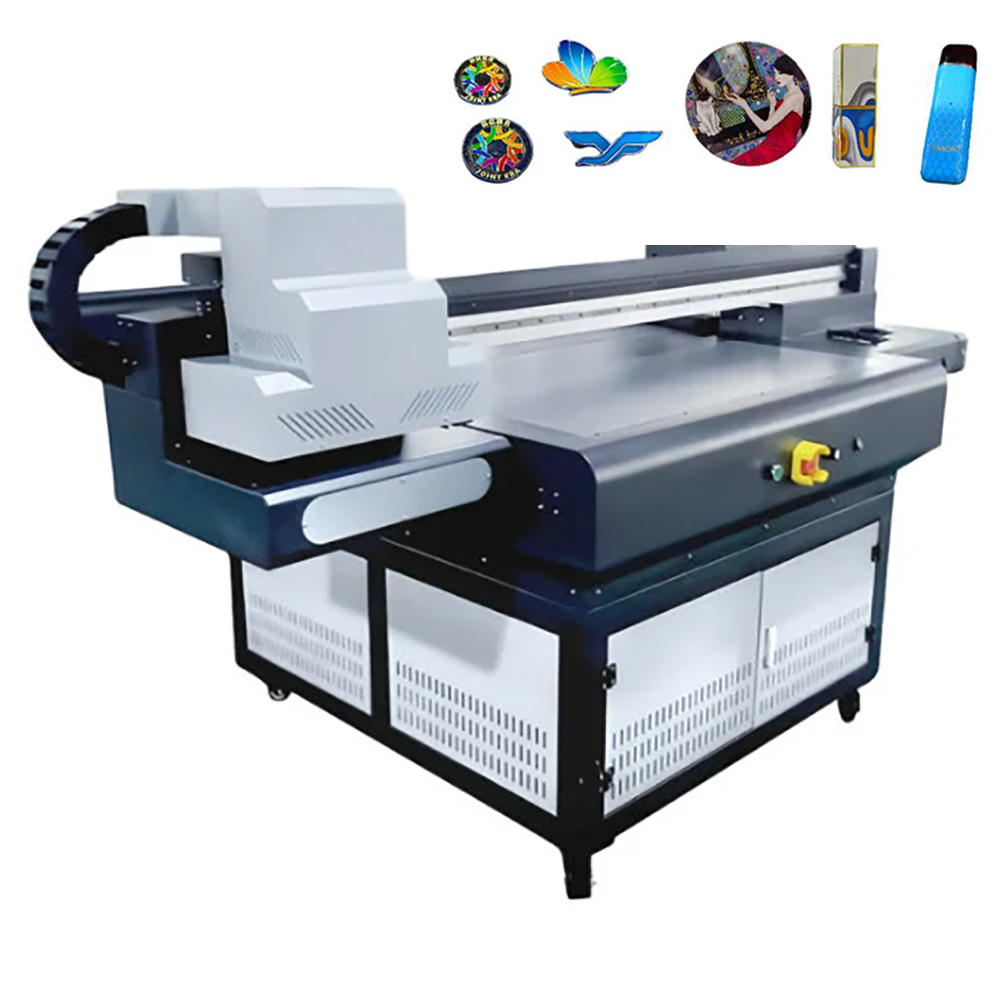

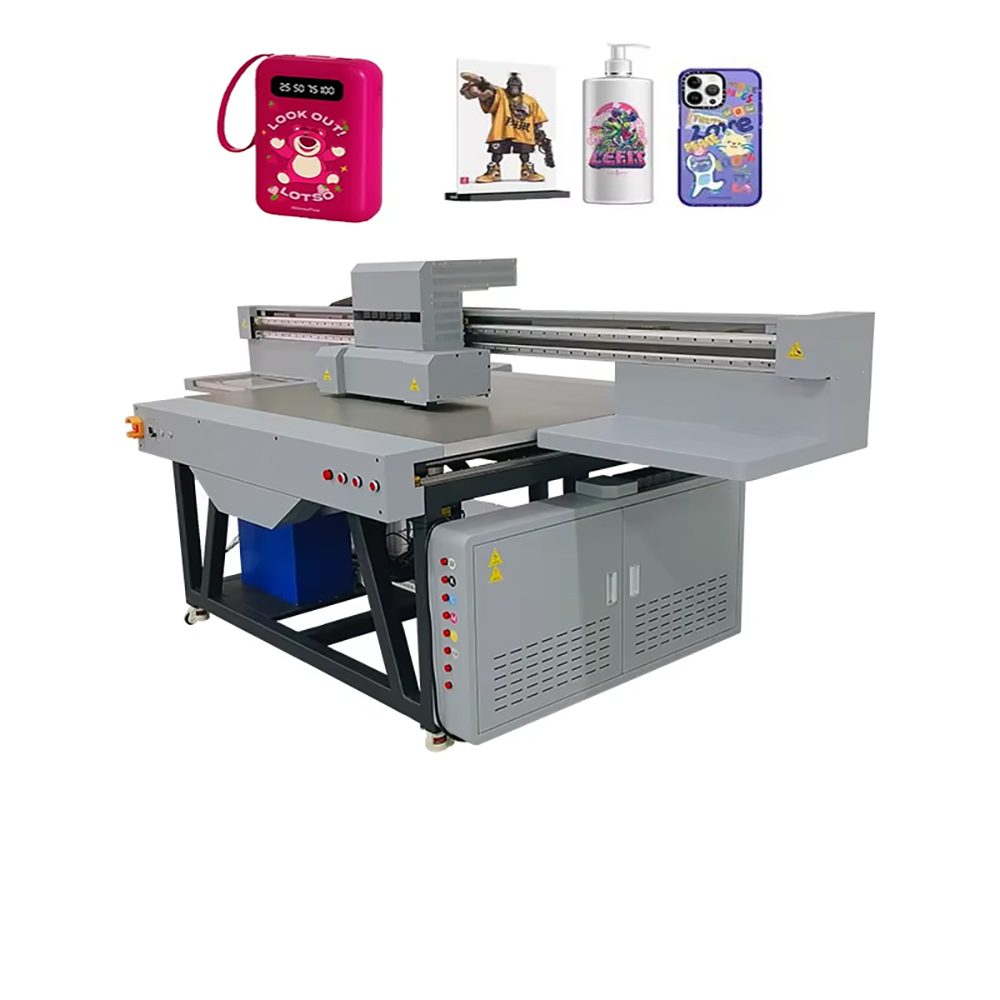

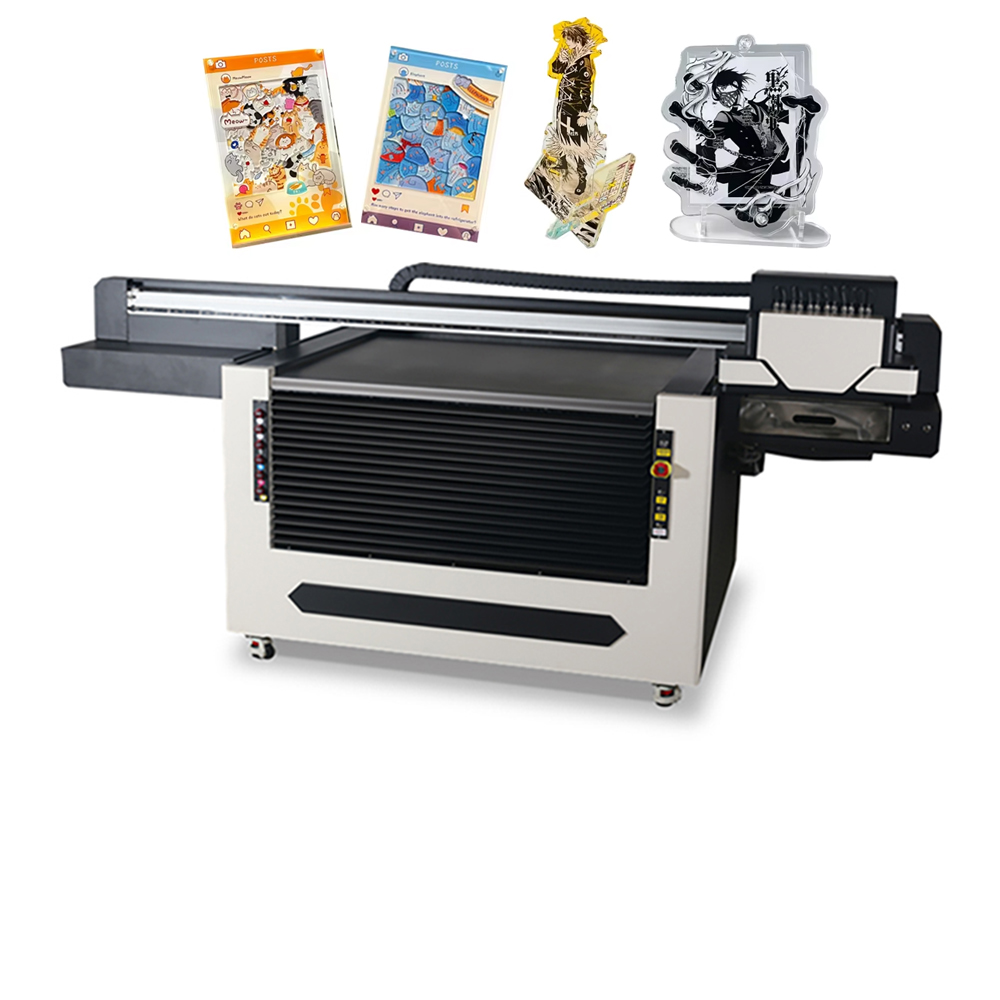

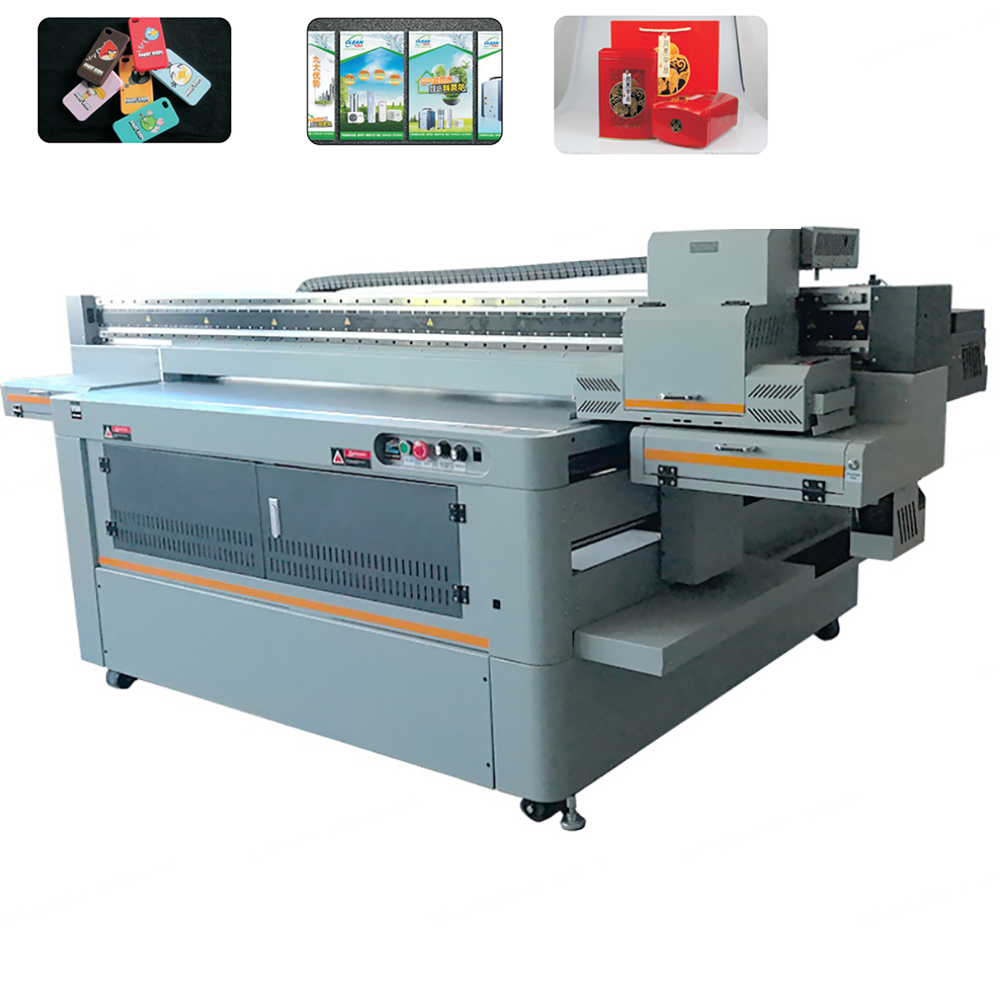

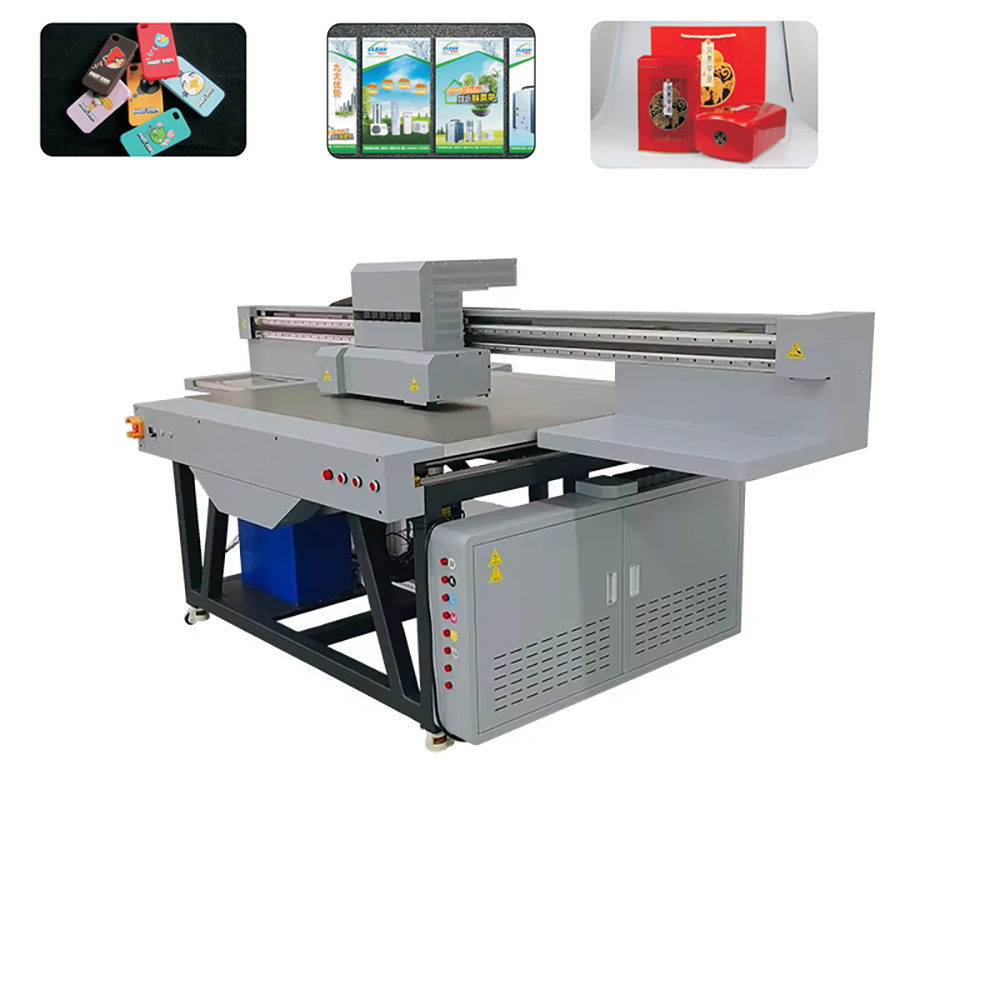

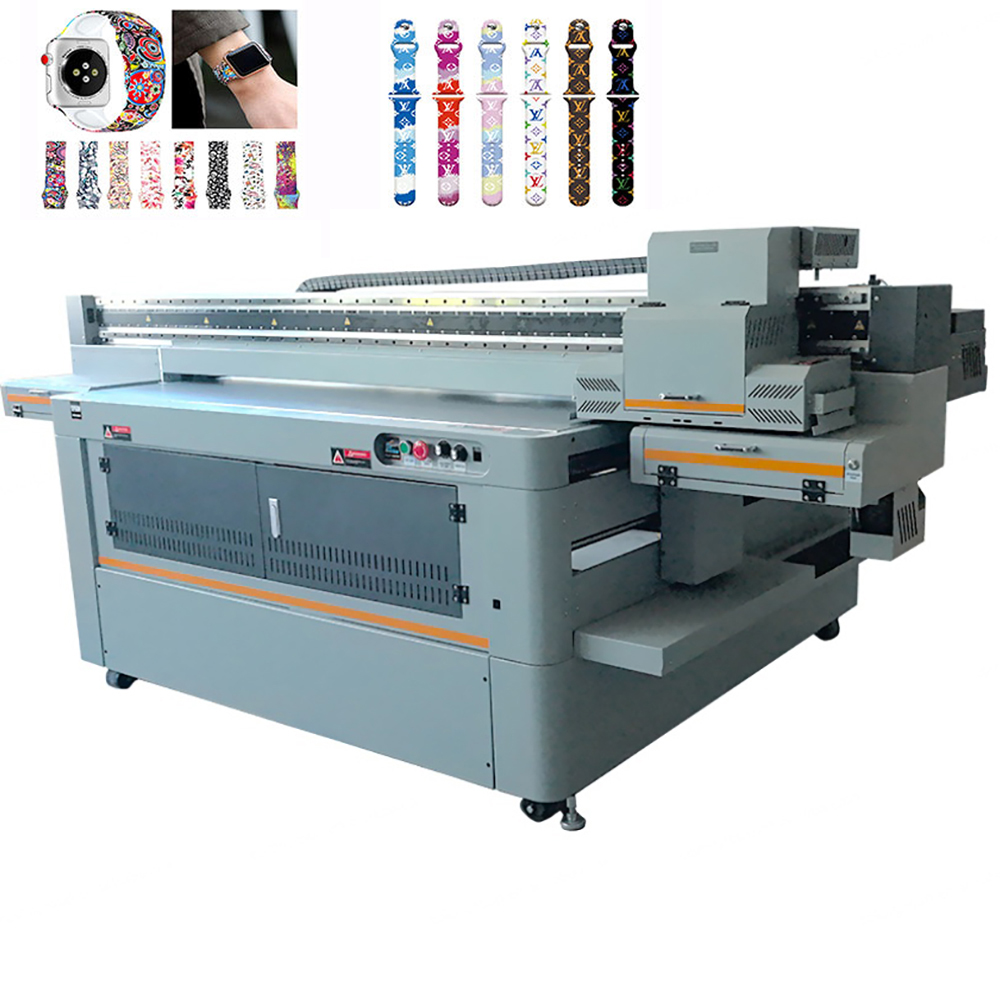

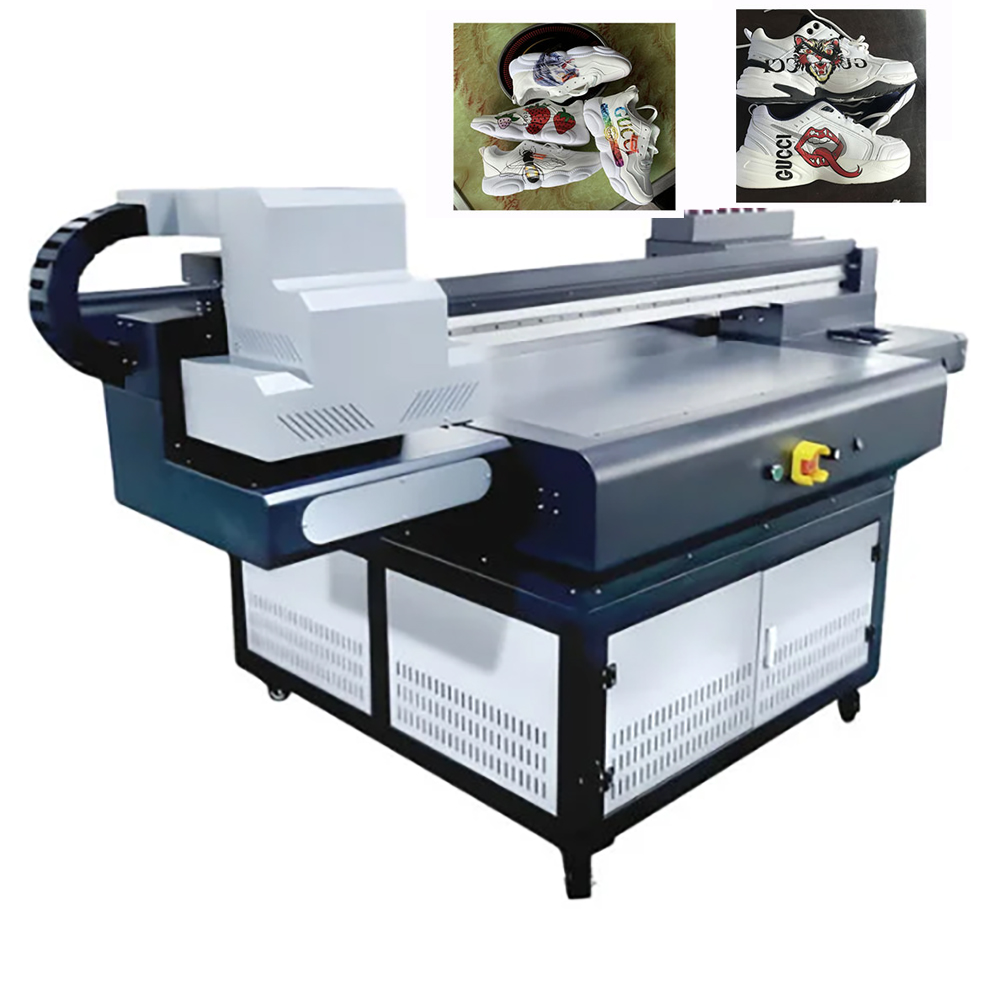

The 1612 UV flatbed printer represents the sweet spot in the UV printing market — large enough for industrial production, yet compact and affordable enough for growing businesses. With a 1600mm × 1200mm (approximately 63″ × 47″) print bed, this machine handles everything from promotional products to industrial components, opening new revenue streams for print shops, manufacturers, and entrepreneurs worldwide.

What Is a 1612 UV Flatbed Printer?

The “1612” designation refers to the printer’s maximum print dimensions: 1600mm × 1200mm. This UV flatbed printer uses ultraviolet light to instantly cure inks as they are deposited, eliminating drying time and enabling direct printing on virtually any flat surface. Unlike roll-to-roll printers limited to flexible materials, a flatbed printer holds rigid materials stationary on a vacuum table while the printhead moves across them.

Core Specifications

Specification Typical Range Benefit
Print Area 1600 × 1200 mm (63″ × 47″) Ideal for medium-to-large format production
Media Thickness Up to 100-150 mm Print on thick objects with relief
Resolution Up to 2400 dpi Sharp, detailed prints on any surface
Printheads Ricoh GH2220/GEN5/GEN6, Epson I3200 Configurable for speed or precision
Ink Colors CMYK + White + Varnish (4-8 colors) Unlimited color possibilities, premium finishes
Curing LED UV (low heat, instant) Energy-efficient, safe for heat-sensitive materials
Weight 600-1,390 kg Solid, vibration-free construction

Why Global Customers Are Choosing the 1612 UV Platform

1. One Machine, Virtually Every Substrate

The 1612 UV printer prints directly onto an extraordinary range of rigid materials:

· Metals: Aluminum, stainless steel, brass, copper (for nameplates, badges, signage)
· Glass & Mirror: Tempered, frosted, laminated (for décor, partitions, gifts)
· Wood & Composites: Plywood, MDF, solid wood (for furniture, crafts, signage)
· Acrylic & Plastics: Plexiglass, PVC, polycarbonate, ABS (for displays, retail, promotional items)
· Stone & Tile: Marble, granite, slate, ceramic (for gifts, backsplashes, monuments)
· Leather & Textiles: Direct onto leather, canvas, synthetic fabrics (for fashion, bags, accessories)
· Electronics: Phone cases, keyboards, panels (with precision alignment features)

The business impact: You become a universal print provider — capable of handling any rigid substrate a client brings through the door.

2. Perfect Size for Maximum Flexibility

The 1612’s 1600mm × 1200mm bed handles a wide range of applications:

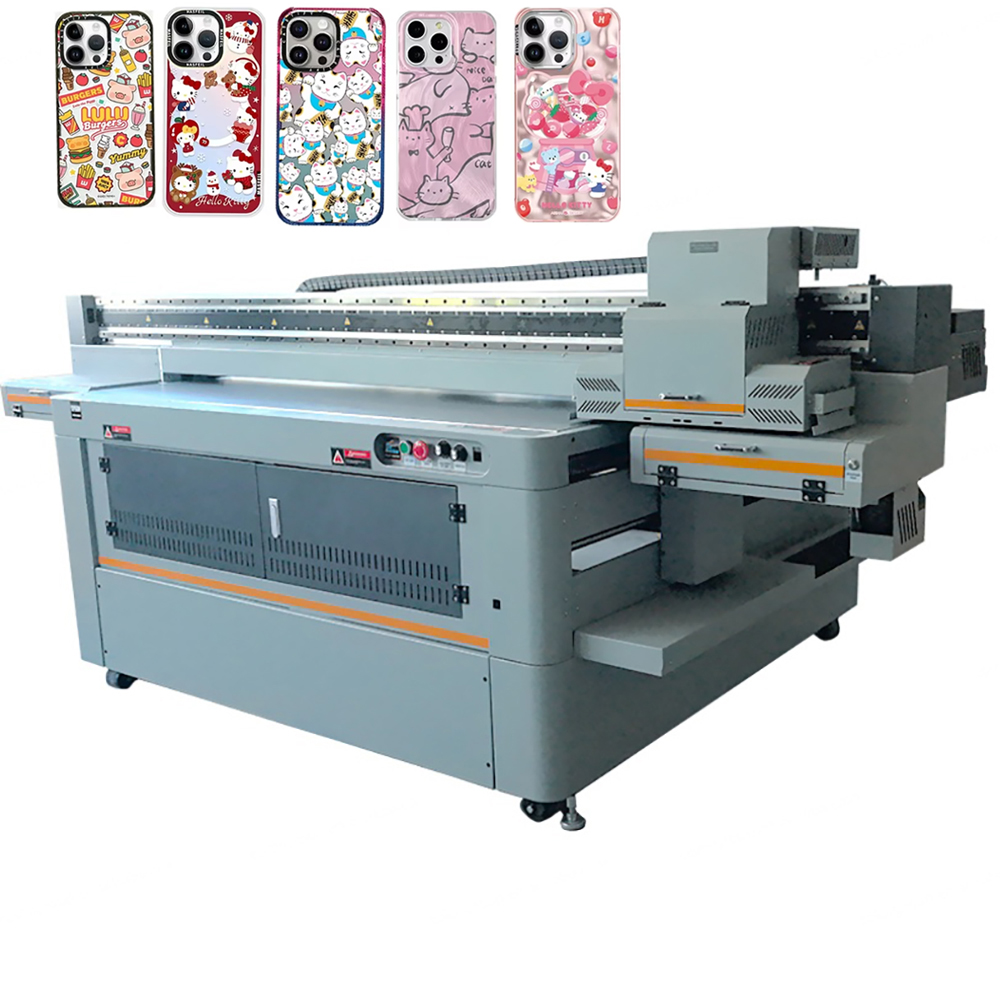

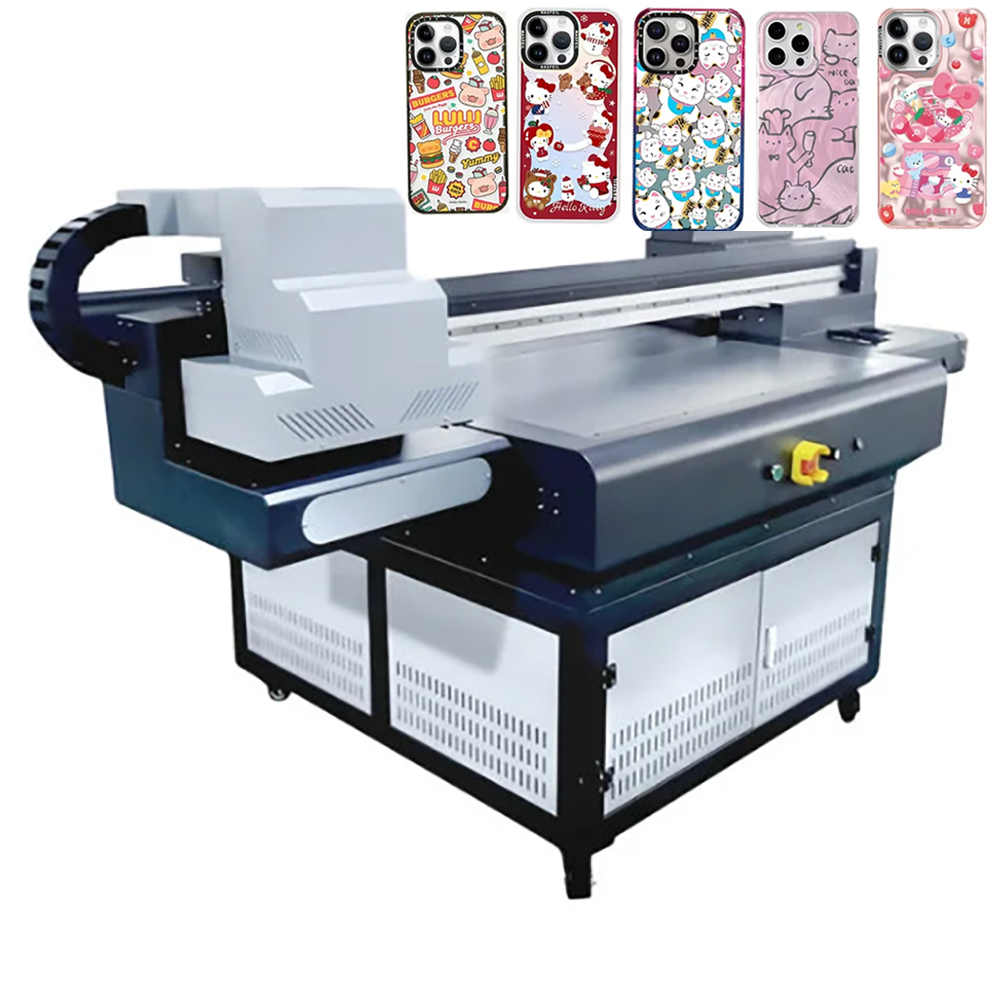

· Promotional products: Custom phone cases, coasters, keychains, badges, and signage kits (nest multiple small items on the bed)
· Medium format signage: POP displays, retail signage, trade show materials
· Industrial components: Electronic panels, nameplates, control labels
· Architectural elements: Decorative glass panels, wall art, custom furniture inlays
· Art & reproductions: Canvas gallery wraps, acrylic prints, personalized gifts

This size is ideal for businesses that need versatility without the footprint or cost of a larger machine.

3. High Precision for Intricate Work

The 1612 delivers exceptional print quality, with resolutions up to 2400dpi and minimum droplet sizes as small as 3.5 picoliters — capable of clearly rendering 0.3mm micro-text and smooth gradients. This makes it perfect for:

· High-end product décor: Luxury cosmetics, electronics, jewelry packaging
· Detailed artwork: Fine art reproductions with photographic quality
· Industrial marking: Barcodes, serial numbers, technical labels on components

4. Advanced Visual Positioning Technology

Many 1612 models feature AI visual positioning (CCD) systems that eliminate manual fixtures and jigs. This delivers:

· Micron-level accuracy for precise alignment on irregularly shaped items
· No manual setup — significantly faster job changeovers
· Perfect registration for two-sided printing and multi-layer effects

For businesses printing on small, oddly shaped items like badges, phone cases, or electronic components, visual positioning is a game-changer.

5. White Ink + Varnish — Premium Finishes

Top-tier 1612 configurations include white ink and clear varnish alongside standard CMYK (and often light cyan/light magenta for smoother gradients).

Application How White Ink Helps How Varnish Helps
Glass printing White underbase makes colors pop on transparent surfaces High-gloss or matte selective coating
Dark substrates Prints bright images without needing white materials Scratch and fingerprint protection
Acrylic displays Enables vibrant backlit signage UV protection, anti-scratch finish
Industrial labels Opaque base for legible identification Chemical and abrasion resistance

6. Scalable Speed — 5 to 52 m²/Hour

1612 UV printers offer speed configurations for every production level:

Configuration Speed Range Best For
Entry-level (2-4 heads) 5-9 m²/hour Prototyping, small shops, low-volume production
Mid-range (4-8 heads) 10-15 m²/hour Growing print-for-pay businesses
High-speed (multi-head) 14-52 m²/hour High-volume production, 24/7 operations

7. Proven Global Shipping & Support

1612 UV printers are actively exported worldwide, with major sales regions including North America, Europe, Southeast Asia, the Middle East, and South America. Manufacturers typically offer:

· CE certification for European safety compliance
· 110V/220V global voltage compatibility
· On-site installation and training
· Lifetime technical support with one-year standard warranty

Who Is Buying 1612 UV Printers Worldwide?

Industry Applications Why 1612
Promotional Products Custom phone cases, badges, keychains, coasters Ideal size for nesting small items; visual positioning available
Signage & Display Retail POP, trade show displays, acrylic lightboxes Versatile material support; white ink for backlit effects
Gift & Craft Photo gifts, personalized décor, crystal art High precision for intricate designs; single-piece profitability
Industrial Manufacturing Nameplates, control panels, component marking Durability; fine text; chemical-resistant inks
Furniture Decoration Custom cabinet panels, tabletops, interior elements Direct printing on wood, MDF, composite panels
Architectural Glass Decorative partitions, shower doors, branded glass White ink for opacity; UV durability
Small Print Shops Diversified production, short-run prototypes Affordability; low entry cost; fast ROI

The ROI: How Fast Do You Recover Your Investment?

Equipment Investment (USD)

· Entry-level 1612 (2-4 heads): $10,000 – $25,000
· Mid-range 1612 (4-8 heads): $25,000 – $50,000
· Premium 1612 (visual positioning, multi-head): $50,000 – $80,000+

Production Economics

Based on real-world data from KAIOU 1612 users, here’s the potential daily income per product type:

Product Type Selling Price Production Cost Profit per Unit
Indoor Poster (1.44m²) $25.00 $4.50 $20.50
Laminated Poster (1.44m²) $35.00 $6.50 $28.50
Custom Fridge Magnet $15.00 $1.00 $14.00
Personalized Photo Card Variable Minimal High margin

Break-Even Analysis (Mid-range $30k machine)

· Daily production: 5-10 sheets/items at $100-500 profit each
· Estimated payback period: 6-12 months for a mid-range model

A packaging company reported ROI in just 8 months on a 1612 model, delivering precision comparable to premium machines at a fraction of the cost.

1612 UV vs. Alternatives: Why It Wins

Feature 1612 UV Flatbed A3/A2 Desktop 2513 Flatbed Screen Printing
Max print size 1.6m × 1.2m 0.4m × 0.6m 2.5m × 1.3m Unlimited
Rigid materials ✅ Direct (medium) ✅ Direct (small) ✅ Direct (large) ✅ Yes (setup heavy)
Small items (badges, cases) ✅ Batch print ✅ Limited ✅ Batch print ❌ Cost-prohibitive
Visual positioning ✅ Available (AI/CCD) ❌ No ❌ No ❌ No
Setup time Minutes Minutes Minutes Hours (screens)
Minimum order 1 piece 1 piece 1 piece 50+ pieces

The verdict: The 1612 occupies a unique sweet spot. It outperforms desktop printers in scale, offers visual positioning for precision work that larger machines lack, and is more affordable than the 2513 — making it ideal for print shops, industrial decorators, and promotional product businesses.

What to Look for When Buying a 1612 UV Printer

✅ Printhead Technology

· Ricoh GH2220/GEN5/GEN6 – Industry standard, excellent for white ink, durable
· Epson I3200 – Cost-effective for entry-level models
· Multiple head configs – 2-8 heads for scalability

✅ Visual Positioning

· AI/CCD cameras – Eliminate manual jigs; essential for small, irregular items

✅ Ink Configuration

· Minimum: CMYK + White
· Recommended: CMYK + White + Varnish
· Premium: 8-color with LcLm for smoother gradients

✅ Maximum Material Thickness

· Standard: 100mm (4 inches)
· Upgraded: 150mm (6 inches) for thicker objects

✅ Certifications

· CE – European safety standard
· RoHS – Restriction of hazardous substances

✅ Support & Training

· Does the manufacturer offer on-site installation and training?
· Is there a local service network or 24/7 remote support?
· Are spare parts (printheads, LED lamps, boards) readily available?
· What is the warranty period? (Typically 1 year with lifetime support)

✅ Pre-purchase Checklist

· ✅ Get sample prints on YOUR materials before buying
· ✅ Ask for a live or video demo showing speed and quality
· ✅ Verify ink adhesion with a scratch test and tape pull
· ✅ Request references from customers in your industry

Ready to Capture the Custom Printing Market?

The 1612 UV flatbed printer is not just a machine — it’s a business expansion tool that enables you to:

· Say “yes” to a wider range of jobs, from promotional products to industrial components
· Print on materials you previously couldn’t — metal, glass, leather, wood, stone
· Offer white ink and varnish finishes that command premium prices
· Use visual positioning for perfect accuracy on small, irregular items
· Scale from one-off samples to production runs — all profitably

Stop turning away custom printing jobs. Start printing your future.
